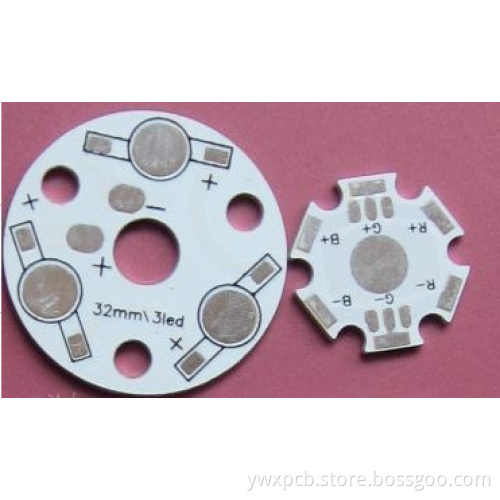

Aluminum Base Rigid Double Sided LED PCB
- Payment Type:
- T/T, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Payment Type: | T/T, Western Union |
Product Description
Product Description
Supply
The following is a list of the services and products we offer:
FR4 Printed circuit boards
1.Single Sided through 48-Layer
2.Blind/Buried Via Configurations
3.Heavy copper up to 10 oz
4.control Impedance PCB
5.High Frequence PCB
Metal clad substrate technology
1.Single sided Aluminum PCB
2.Double sided Aluminum PCB
3.FR4+Aluminum mixed backed circuit boards
4.Copper substrate PCB
If you have the PCB file, we can make the PCB for you soon.
Please kindly send us your PCB files (Gerber/Protel/CAM/Eagle) for final quotation.
If you have not gerber file now, but you could got CAD or draw pictures,
we also could make PCB layout design for you.
These are only reference info, not the final prices and PCB images.
All PCBs are custom design.
How to get a quotation from us?
In order to enable us to make you a quotation, please provide me below information.
1. PCB Files
Please send me your PCB files in Gerber/Protel/CAM/Eagle or CAD or draw pictures.
2. Available PCB Base Material:
FR4 1.6mm, FR4 1.2mm, FR4 1.0mm, FR4 0.8mm, Aluminium 1.6mm or other
3. Available Copper Thickness:
0.5oz, 1oz, 2oz, 3oz, 4oz
4. Surface Treatment
Immersion Gold Over Nickle, HASL Lead Free, OSP
5. Available Colors for Solder Mask and Top Overlay(Component Legend)
Green, Blue, Red, Black, White
6. Your accurate address
One example of common specification for PCB is as below:
FR4 1.6mm, ROHS, 1/1oz, Immersion Gold over Nickle, Green Solder Mask, White Top Overlay
quantity , And your address
