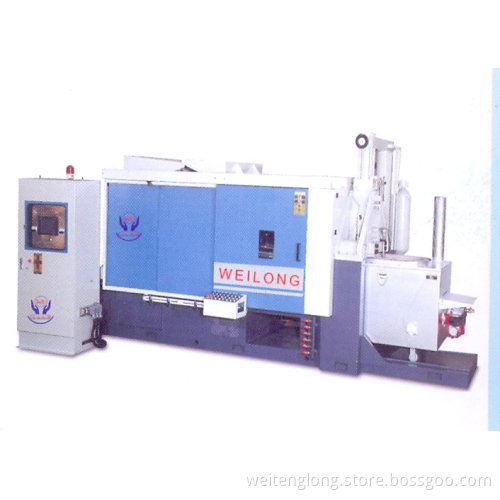

Cold Chamber Die Casting Machine

Die closing system

A. Adopts optimized comprehensively hydraulic driving double toggle system, multistep pressure & multistep speed adjustment, is used to get a smooth and steady mechanism.

B. Faster speed claming devices can shorten production cycle efficiently so as to improve productivity.

C. Low pressure clamping devices, can protect the safety using the mould, with hydraulic and electrical bi-insurance.

D. Hydraulic motor die height adjustment device: Easy to control, safety & reliable.

E. Capacity type electric centralized lubrication system, ensure the clamping structure keep better lubricating, and guarantee service life.

F. With finite-element analysis design, platen structure is more reasonable, and has better strength & stiffness.

Injection system

A. Tabulated style injection system, minimum injection pressure lose, fastest reaction time.

B. Costs of maintain greatly decrease due to using Piston ACC;

C. Lowest pressure lost and shortest respond time by using reinforced injection system.

D. Injection displacement is controlled by magnetic gauge, and injection stage can set on HMI (Human-Machine Interface), therefore operation will be more accurately & safety. Fast-speed injection transmit signal independent & intensification transmit signal independent, can keep product at a high quality. Injection pressure & injection speed can be step-less adjusted.

E. Independent setting injection & intensification accumulator: Noninterference between fast-speed injection & intensification, independent regulator. Germany BUSAK & SHAMBA CO., Ltd design and produce injection oil cylinder & accumulator oil seal, ensure injection oil cylinder & accumulator work for a long time.

Hydraulic system

A. Hydraulic main system adopts double proportional control system, HMI computer system, die close lineal transducer and injection magnetic railings ruler, to machine adjust more convenient and safety. Multi-parametric storage, is beneficial to large scale production management. Pressure & speed can be step-less adjusted.

B. Logic valve & hydraulic screw-in valve are widely used, so reduce possibility of system inner leaking and improve hydraulic valve working life & anti- polluted capacity.

C. Import filter of hydraulic oil pump inlet, ensure hydraulic oil pump for a long working life; High pressure pipeline of hydraulic oil pump outlet, ensure hydraulic oil system cleanness, up-grade machine reliable.

Controlling system

A. Cycle time and counting function

B. Reset function

C. Abnormal status alarm by light and buzzer

D. Die parameter storage and recall function (20 groups)

E. Input and output status monitoring functions

Select Model:
R38
R50
R88
R138
R168
R200
R280
R400
