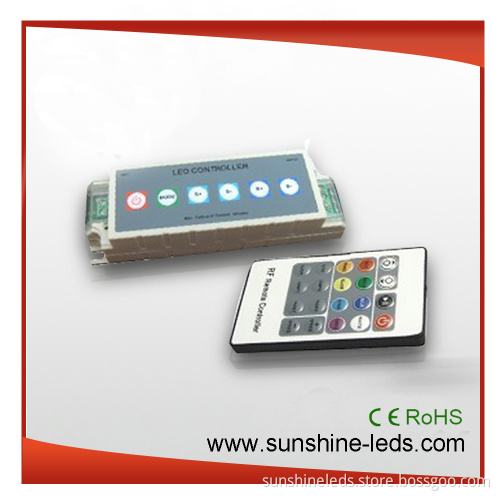

RF/RGB/Blueteethcontroller for All LED Lights Control

RF controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; At the same time, it has many advantages such as convenient connection, simplicity to use and others. According to actual need of customers, it can carry out jumpy changing, gradual changing, strobe flash and other effects of change.
Technical parameters:
1. Working temperature: -20-60
2. Supply voltage: DC5V, 12V, 18V, 24V (for orders specify voltage)
3. Output: 3 channels
4. Transmission/receiving frequency: 433MHz
5. Remote distance: 10~15M
6. Controller dimension: L128 * W64 * H24 mm
7. Remote dimension: L85*W52*H7 MM
8. Packing size: L145*W95*H50mm
9. Net weight: 165g
10. Gross weight: 205g
11. Static power consumption: < 1 W
12. Output current: < 4 A (each channel)
13. Output power: 5V: < 60W, 12V: < 144W, 24V: < 288W
