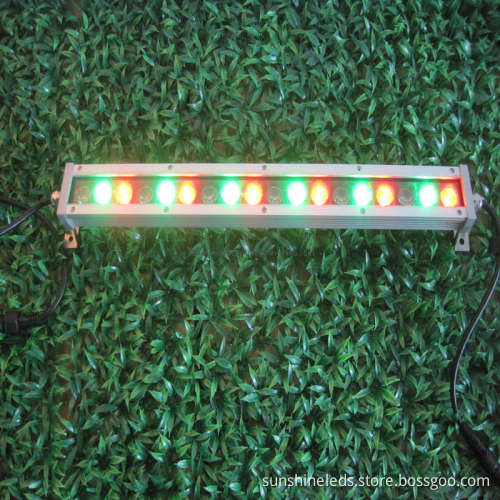

High Brightness 36W Linear LED Power Wall Washer

LED wall washer lights Product Description
Specification of Ultra-thin LED Wall Washer
Our ultra-thin LED wall washer adopts high power 1W LED as lighting source. High efficiency, colorful and long life span. Meanwhile, the housing cover is good for heat sinking, light weight, easy for installation and good at waterproof. So it's the best choice for decoration of architecture.
Power configuration
Configure the four-line three-loop RGB controller and switching power supply as the max power consumption.
Control method
1) Use four-line three-loop RGB controller. Address mode is DMX Control channal.
2) Use four-line three-loop RGB controller, select the host internal control mode.
Remarks
1) Used for indoor or outdoor, working voltage -20~50.
2) Single color wall washer only need power supply, RGB color will need RGB controller and power supply.
3) To ensure the transmission of the DMX signal is reliable Lighting devices surpass 100M should increase amplifier in the DMX signal amplfier to enlarge the DMX signal.
4) When one controller control several wall washers, the sum of the max powers shouldn't surpass the controller's rated power, and can't surpass the power supply rated power's 0.8 times.
5) The input and output port should meet the standard requirements, otherwise it will create damage to lighting.
