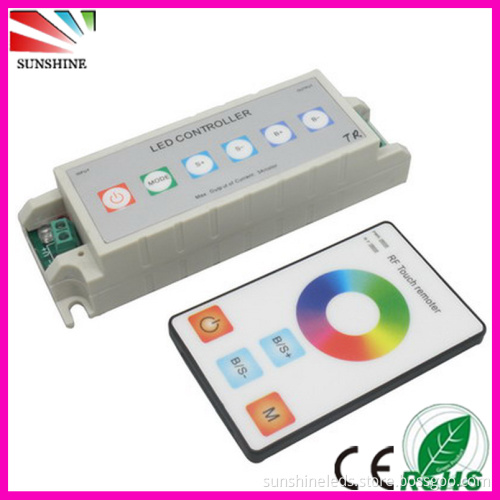

6-Key Touch RF RGB LED Controller

6-key Touch RF RGB LED controller
1. Touch RGB RF controller
2. RGB wireless controller for RGB products
3. CE&RoHS approved
4. 2years warranty
Main feature
1. Touch-button, ultrathin, light quality, protable.
2. Touch-key count up to 64, up to 64 kinds of mode function, small volume, more key funcation.
3. Easy to use, have color pulley touch screen, all sorts of design and color mode at a glance, can a single point also can continuous touch to realize color mode select, users can speedily choose the needed color, and the static and dynamic mode can change freely.
4. Auto dormancy function, the remote control is without buttons state more than 20 seconds, remote will automatic enter the standby state, realize save electricity, extending battery life.
Technical Parameters
Controller
1. Working temperature: -20-60 degrees
2. Supply voltage: DC5V, 12V, 18V, 24V < optional > ( supply voltage should be marked on order )
3. Output: 3 channels
4. Connection mode: Common anode
5. External dimension: L130 * W40 * H31 mm
6. Packing size: L140 * W50 * H60 mm
7. Net weight: 125g
8. Gross weight: 150g
9. Static power: <1W
10. Output current: <3A( each channel )
11. Output power: 5V<45W, 12V<108W, 24V<216W
Touch remote
1. Working temperature: -20-60 dergees
2. Power supply mode: 28*8mm battery
3. Supply voltage: 12V
4. Static power consumption: 0.036mW
5. Standby current: 3uA
6. Work current: 300uA
7. Emission current: 12mA
8. Remote distance: 30m
9. Standby time: 6 months
Controller panel have 6 buttons, and the function as follows:
ON/OFF: You could turn on/off controller at any time;
MODE: The color change button, there are 21 modes of change for you to choose;
B+: A brightness control button, the grade of the brightness add 1 by each pressing, a total of 100 grades;
B-: The grade of the brightness subtract 1 by each pressing;
S+: The grade of the speed change add 1 by each pressing, a total of 100 grades.
S-: The grade of the speed change subtract 1 by each pressing.
