4V Electric Tool Battery-Telong 4V3ah Maintenance-Free Lead Acid Battery
  • 4V Electric Tool Battery-Telong 4V3ah Maintenance-Free Lead Acid Battery
4V Electric Tool Battery-Telong 4V3ah Maintenance-Free Lead Acid Battery

4V Electric Tool Battery-Telong 4V3ah Maintenance-Free Lead Acid Battery

Get Latest Price
Payment Type:
L/C, T/T, Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Shenzhen China(Main Land)
Payment Type: L/C, T/T, Western Union
Product Description
Product Description
______________________________________________COMPANGY______________________________________________
Telong Energy Technology
                       Co.,Ltd
ABOUT US:
Shenzhen Telong Energy Technology Co.,LTD was founded in 2005, Specialized in
researching,developing,producing and sales of lead acid battery, lithium battery and
Gel battery. Its worldwide sales network already covers more than 100 countries and
regions, and has a good cooperation partnership with several excellent operators.
PRODUCTS:
General AGM Lead Acid Battery (2v, 4v, 6v, 12v, 24v)
Deep Cycle Service AGM Battery (6v, 12v)
Front Access Terminal AGM Battery (12v)
GEL AGM Battery (2v, 12v)
OPzV,OPzS Tubular Gel Battery (2v, 12v)
Automotive batteries, Motorcycle batteries, Golf car batteries,etc.

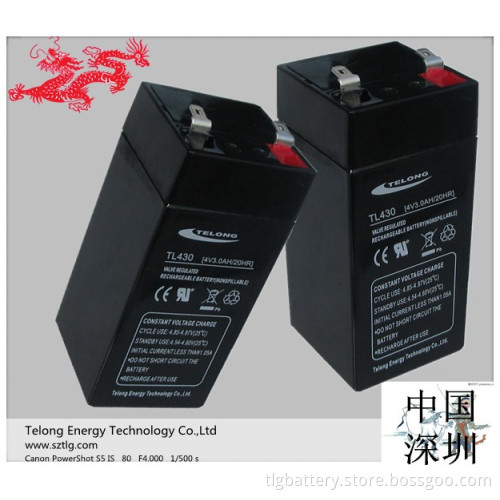

____________________________________________TL430(4v3ah)________________________________________________
BATTERY CONSTRUCTION
Component Positive Plate Negative Plate Container
Raw material Lead dioxide lead ABS

Cover Safety valve Terminal                   Separator Electrolyte
ABS Rubber Copper Fiberglass Sulfuric acid

SPECIFICATION
Nominal Voltage 4 V
Rated capacity (20 hour rate) 3 Ah
Dimension                 Length 47mm (1.83 inches)
Width 47mm (1.83inches)
Height                         100mm (3.90inches)
Weight Approx 0.40Kg(0.88Ibs)

________________________________________________FEATURE__________________________________________________
1).Absorbent Glass Mat(AGM) technology for efficient gas recombination of up to 99%and free-
   dom from electrolyte maintenance or water adding.
2).Not restricted for air transport-complies with IATA/ICAO Special Provision A67.
3).UL-recognized component.
4).Valve Regulated Construction .Can be mounted in any orientation.
5).Computer designed lead, calcium tin alloy grid for high power density.
6).Long service life, float or cyclic applications. Maintenance-free operation.
7).Low self discharge. Long Life Design
8).Wide Operation Temperature Range
9).Available in flame retardant ABS material for the battery case V0
___________________________________________CHARACTERISTICS___________________________________________
Capacity 20 hour rate(0.15A ) 3.0AH
25'C (77'C) 10 hour rate(0.28A ) 2.8AH

1 hour rate(1.96A  ) 1.96AH
Internal Resistance Full charged Battery at 25  'C(77'F  ) 30 milli-ohm
Capacity affected by Temp 40'C (104F) 102%
25'C (77'F) 100%
0'C (32'F) 85%
(-15'C )5'F 65%
Self-Discharge Capacity after 3 month storage 91%
25'C (77'F)                                         Capacity after 6 month storage 82%

Capacity after 12 month storage 64%
Terminal F1
Charge Cycle   Initial Charging Current less than 0.75A
(Constant Voltage) Voltage 4.8-5.0V

Float Voltage4.5-4.6 V

____________________________________________APPLICATIONS____________________________________________
UPS
Electric Tools
Medical equipment
Emergency Lighting
Alarm system
Electric Power Supply
Communication Power Supply
DC power Supply
Other standby or primary power supplies. Emergency lighting system
________________________________________________CATALOG_____________________________________________
No. Model No. Rated Voltage
(V)		 Rated Capacity
(AH)		 Form Factor(mm) terminal Weight
±4%(Kg)
L W H
mm mm mm Type Kg
1 TL430 4 3 90 34 66 F1/F2 0.45
2 TL435 4 3.5 90 34 66 F1/F2 0.45
3 TL445 4 4.5 47 47 100 F1/F2 0.5
4 TL460 4 6 47 47 100 F1/F2 0.55
5 TL612 6 1.2 98 25 56 F1 0.3
6 TL623 6 2.3 43 37 76 F1 0.33
7 TL628 6 2.8 66 33 100 T1 0.55
8 TL632 6 3.2 134 34 67 T1 0.65
9 TL630 6 3 70 47 100 T1 0.63
10 TL635 6 3.5 70 47 100 T1 0.67
11 TL640 6 4 70 47 100 T1/T8 0.67
12 TL645 6 4.5 70 47 100 F1 0.73
13 TL650 6 5 70 47 100 F1/F2 0.73
14 TL660 6 6 70 47 100 F1/F2 0.82
15 TL670 6 7 151 34 100 F1/F2 1.16
16 TL680 6 8 151 34 100 F1/F2 1.16
17 TL6100 6 10 151 50 100 F1/F2 1.55
18 TL6120 6 12 151 50 100 F1/F2 1.65
