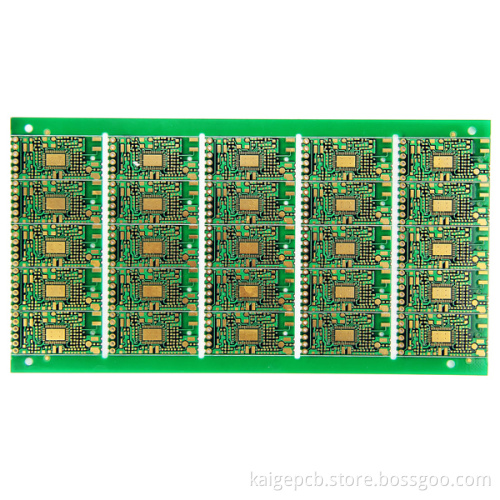

Half-Hole 4L Multi-Layers Fr-4 Immersion Gold PCB 35um UL RoHS Certifed Circuit Board

Get Latest Price

Payment Type:: L/C, T/T, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China
Payment Type:	L/C, T/T, Paypal, Western Union

Product Description

Model No.:                       KG-M4-004
Number of Layers:          4L half-hole
Base-Material:                 FR-4
Thickness:                       1.0 mm+/-10%
Final-Cu:                          35um
Impedance:                      No
Blind and buried via:       No
Min. Drill hole:                  0.25mm
Min. Line space:              0.15mm
Min. Line width:                0.15mm
  Mech. Treatment:             Routing
  Surface Treatment:          Immersion gold
  Solder-Mask:                   Green
  Legend-Print:                  White
100% E-Test:                  Yes

Half-Hole 4L Multi-Layers Fr-4 Immersion Gold PCB 35um UL RoHS Certifed Circuit Board
