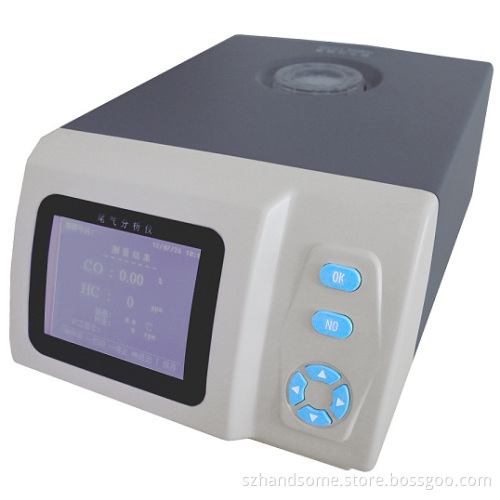

SV-2Q Full-Automatic Car Exhaust Gas Analyzer

SV-2Q full-automatic Car Exhaust gas analyzerSV-2Q full-automatic Car exhaust gas analyzer, in accordance with non-light-disguising infrared absorption method, via micro-computer analysis, directly measure the thickness of HC, CO in the exhaust gas of vehicles. The analyzer introduces advanced foreign technology. It is composed of complete imported machinery cores, boasts the advantages of accuracy measurement, high endurance and speed. It's utilized for auto-manufacturing factories, vehicle inspection stations and garages. The main technical parameters: 1, Measurement range: CO: 0-10.0 10-2(%)HC: 0-10000 10-6(ppm)2, Repeatability: ≤ ± 2%3, Zero floating: CO: ± 0.06 10-2(%)/1hHC: ± 30 10-6(ppm)/1h4, Not exceed the allowed value for indication error(1 hour)5, Indicated error: CO: ± 10%(relative error0-10%)HC: ± 3(relative error0-2000ppm)± 5%(relative error2001-5000ppm)± 10%(relative error5001-10000ppm)6, Environmental temperature: Temperature: 0° C~40° CHumidity: ≤ 80%Air pressure: 60~105kPaPower: AC 220V± 10%; 50Hz7, Preheat time: 10min8, Sampling method: Directly sampling9. Weight: 14kg10. Packing size: 610X500X330mm
