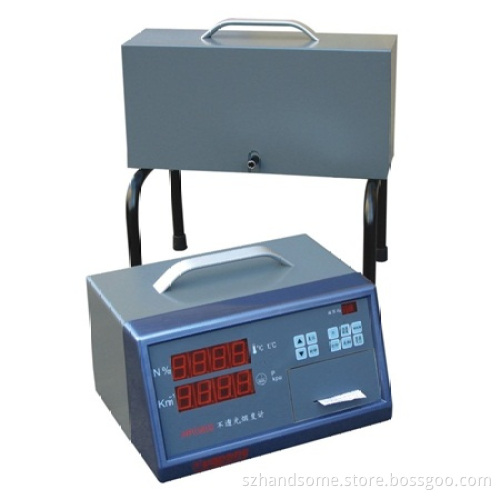

HPC-602 Portable Smoke Opacimeter

HPC-602 Portable Smoke opacimeterMain Features: Separated structural design, operation more convenient and more accurate data. Adopted a triage-type sampling technique, diesel engine acceleration, deceleration, and steady speed can be measured when the smoke; Linear automatic data processing, can be displayed opacity degrees N, light absorption coefficient K and the corresponding value of filter paper-type smoke SF; High-brightness digital display; Use of "air curtain" technology to protect the optical system from contamination; Automatic detection of room temperature control, anti-condensation can affect the test accuracy; Automatically attached to the time display; Optional speed measurement and oil temperature measurementShow where the failure of automatic diagnosis unit; Equipped with built-in printer (or digital RS-232A interface or analog interface); In line with ISO11614 and GB3847-2005 technical requirements. Main technical parameters: Test Scope: No light transmission N: : 0~100% (equivalent to smoke value 0 ~ 10FSN)Light absorption coefficient K: 0-16.06 m-1RPM: 0-9990rpm OIL TEMP: 0-150° CIndication error of +/- 2% ( measured value)Stability of automatic zero adjustment, moment drift less than+/-1% / 4HRepeatability repetition error of+/-1%Resolution: N: 0.1%, K: 0.01m-1, RPM: 10rpm, OIL TEMP: 0.1° COutput mode: Digital direct reading, can be attached to the printer to print the smoke concentration ( darkness) maximum value, test time, date. Can interface with computer networkingMeasurement of smoke temperature of 70 degrees C ( automatic thermostat ), when the temperature error = + 10%, temperature and error indicator lightEnvironmental conditions of temperature -5 to 50 DEG C, relative humidity 90%AC100-240V 50/60Hz 150VA power source power consumptionDimensions ( including bracket) control portion of the 240mm (L) X 310mm (W) X 170mm (H)Light path part 130mm (L) X 400mm (W) X 390mm (H)Weight control section 4kgLight path part 5kg
