Drain / sewer pipe inspection camera CCTV inspection pipe camera

Product Discription

CCTV pipe inspection camera system V7-3188D with 23mm camera head, is mainly designed for inspecting pipe from 25mm to 200mm. 7" color LCD monitor with sunshade, high definition and can be observed under strong sunshine. DVR control box easy to record and replay video, photo. A removable SD Card records images and video for later review and easy transfer to a PC for reporting or sharing via email. 12 pcs high brightness LEDs lighting can easily check all pipes problem inside

Applications of CCTV pipe inspection camera system

1. WATER SUPPLY

2. WASTER WATER

3. ELECTRICAL AIR CONDITIONER

4. CABLE DUCTING

5. DUCTED VACuUM SYSTEMS

6. PLUMBING

7. IN BUILDING

Specifications for CCTV pipe inspection camera

Camera Head

* Camera head size Φ23 x 45mm for pipe Φ25 to 200mm
* Camera head housing material stainless steel
* Camera lens cover material sapphire glass
* Sensor size 1/4 inch
* Total Pixels PAL 720X576 NTSC 720X 480
* Field of view 120°
* Camera lighting 12 white LEDS

Monitor

*7 inch TFT LCD monitor
* Power supply DC 12V

DVR Control Box

* DVR power supply 12V DVR work current 200mA
* Storage medium SD card (8G SD card included)
* Li-ion Battery power supply (18650 x 9 pcs 6600 mAH)
* Charging time 5 hours, working time 6 hours
* Keyboard output

Cable Reel

* Stainless steel Cable Reel size Φ 320 x 110mm
* 20m Φ5.2mm fiberglass rod push cable (30m, 40m optional)

Carrying case

* ABS Carrying case size: 520 x 435 x 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum

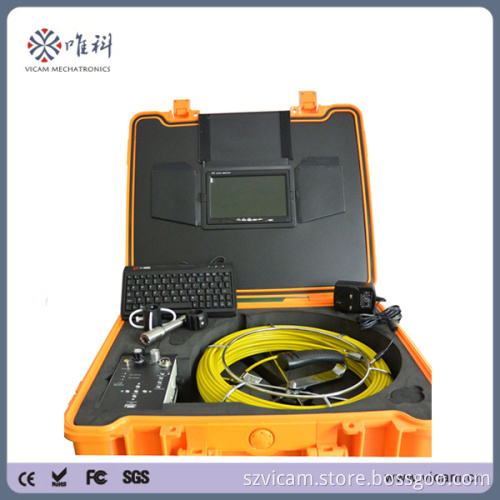

Pictuers for CCTV pipe inspection cameras
