Hot New Products 50mm Push Rod Camera Pipe Inspection Robot for Drain / Sewer
  • Hot New Products 50mm Push Rod Camera Pipe Inspection Robot for Drain / Sewer
Hot New Products 50mm Push Rod Camera Pipe Inspection Robot for Drain / Sewer

Hot New Products 50mm Push Rod Camera Pipe Inspection Robot for Drain / Sewer

Payment Type:
L/C, T/T, Paypal, Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Shenzhen, China
Payment Type: L/C, T/T, Paypal, Western Union
Product Description
Product Description

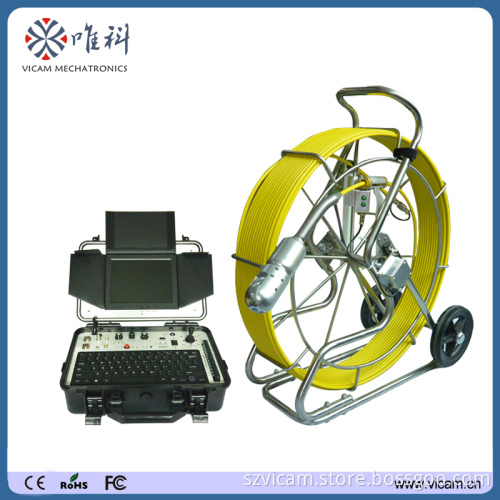

Hot new products 50mm Push rod camera pipe inspection robot for drain / sewer

Pipe inspection robot description

Pipe Cameras are used in a lot of different fields and are specifically designed to make it easier for plumbers, contractors, inspectors, engineers, municipal workers and other professionals to inspect the areas that are normally hard to reach. These inspection devices can reach and explore difficult spots in waste water systems, storm water systems, pipelines of different kind, drains, ducts and other hard-to-see areas.

Our PT camera with Pan 180 degree rotation and Tilt 360 degree rotation, can check any corner of applications. HD DVR Control Unit with128G Solid State Drive (SSD), can record long time and big videos / images / sounds. What's more, it can connect with 3 cameras at the same time ( Video input jack 3 options )
Hot New Products 50mm Push Rod Camera Pipe Inspection Robot for Drain / SewerPipe inspection robot specification

Camera head
Camera head size ø50mm x 154mm
Camera head casing material Aluminum alloy
Camera head window lens material Sapphire galss
Sensor 1/4" color CMOS
Static view angle 120 degree
Sensor resolution PAL:720H×576V  NTSC: 720H×480V;
Horizontal resolution 700TVL
Shutter 1s-1/10000s
Frame rate PAL:50 fields/sec     NTSC: 60 fields/sec
TV system PAL/NTSC optional
Video output 1.0 Vp-p / 75Ω(CVBS video signal)
Lighting 6pcs high intensity white LED lights
Waterproof Waterproof IP68
Rotation Pan 180 degree, Tilt 360 degree
Working voltage DC 12V
Working current 260mA Max
Working environment  -10ºC~60ºC
Cable reel
Real Capacity 300m
Cable material Fiberglass push rod cable
Cable diameter ø9mm
Standard cable length 60m to 120m optional
Max length available 200m length
Meter counter device Electronic meter counter
Cable real size 70 x 28 x 84cm
HD DVR Control system
8" LCD Screen
PT camera Joystick
HD DVR SYSTEM with 128G Solid State Drive(SSD)
Recording Pause funceion
Keyboard real time typewriting
USB Port connecting to PC
Video input jack 3 options
Microphone Audio recording button
A/V output jack
8800mA rechargeable Li-ion Battery Pack
Battery level indicator


Hot New Products 50mm Push Rod Camera Pipe Inspection Robot for Drain / SewerOur services

We are always ready to provide you our best service with more than 10 years professional experiences
All inquiries will be replied within 24 hours.
Fast delievery
Our product quality policy is that each shipment with 1 years guarantee and 7 days unconditional returns
Your satisfaction is more important than your order to us
OEM / ODM Services are available

Company information

Backed by Cyberia SAS and Shenzhen Institutes of Advanced Technology
Vicam Mechatronics Co. Ltd is located in Shangxue Industrial Park in Shenzhen, south China, specializing in the design, manufacture and assembly of video inspection systems. We have introduced international advanced technology, and designed and produced various video inspection cameras. Most of our products sell well in Europe, the US, Australia, the Middle East, South Africa and South America. In the process of development, we have got very important technical support from Cyberia SAS and Shenzhen Institutes of Advanced Technology.


Can be Used in Complex Applications and Hazardous Areas
Our main product range includes portable pipeline video inspection systems, industrial and city underground pipe video inspection systems, special video inspection cameras and CCTV robots for complex applications and hazardous area rated environments. Our tenets are to rely on the advanced technology, to meet the global market demand, and to provide good quality products and good services to all our customers.


Certifications
Hot New Products 50mm Push Rod Camera Pipe Inspection Robot for Drain / Sewer

 Hot new products 50mm Push rod camera pipe inspection robot for drain / sewer
