Portable Industrial Pipe Inspection Camera with Meter Counter Device (V8-3188KC)

Portable Industrial Pipe Inspection Camera with Meter Counter Device (V8-3188KC)

Get Latest Price

Payment Type:: T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China
Payment Type:	T/T, Western Union

Product Description

Portable industrial pipe inspection camera with meter counter device
Camera Head

* Camera head size Φ23 x 45mm for pipe Φ25 to 200mm
* Camera head housing material stainless steel
* Camera lens cover material sapphire glass
* Sensor size 1/4 inch
* Total Pixels PAL 720X576; NTSC 720X 480
* Field of view 120°
* Camera lighting 12 white LEDS

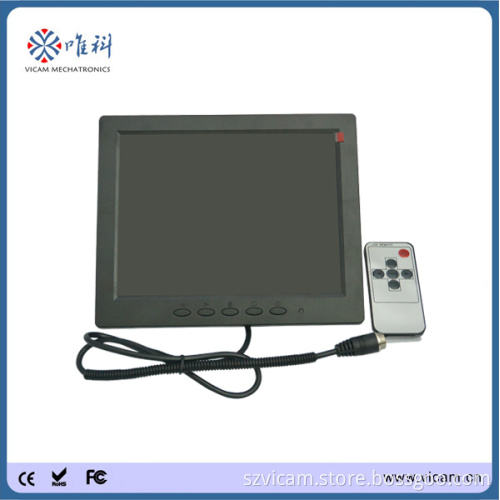

Monitor
*8 inch TFT LCD monitor
* Power supply DC 12V
DVR Control Box

* DVR power supply 12V
*DVR work current 200mA
* Storage medium SD card (8G SD card included)
* Li-ion Battery power supply (18650 x 6 pcs 4400mAh)
* Charging time 5 hours, working time 6 hours
* USB jack for Keyboard
* MIC on / off button and earphone output jack ( earphone bud included)
Cable Reel with Meter Counter
Portable Industrial Pipe Inspection Camera with Meter Counter Device (V8-3188KC)

* Counter device on the cable reel error rate less than 0.1%
* Stainless steel Cable Reel size Φ 320 x 110mm
* 20m Φ5.2mm fiberglass rod push cable (30m, 40m optional)
Carrying case
* ABS Carrying case size: 520 x 435 x 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum
Delivery time 1 week
