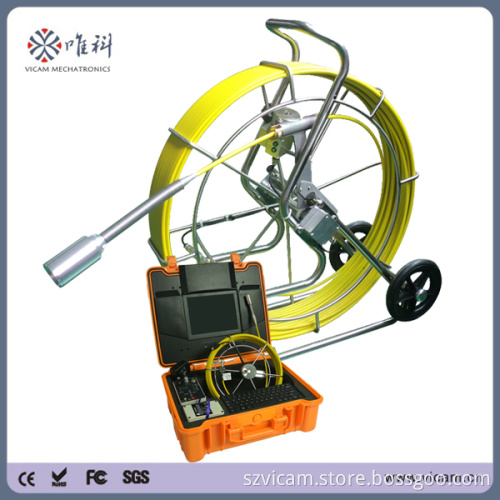

Amphibious Pipe Camera, Inspection Camera, and Pipe Inspection System

Get Latest Price

Payment Type:: L/C, T/T, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China
Payment Type:	L/C, T/T, Paypal, Western Union

Product Description

Amphibious Pipe Camera, Inspection Camera, and Pipe Inspection System

1 Camera Head
1/3" Color CCD 600 TV lines
* Camera size Φ 50mm X 88mm for pipe Φ 55mm to 600mm
* Waterproof: yes, IP68
* Self-levelling image
* Field of view: 90°
* Camera lighting: 18 high intensity white LED
* Camera window: sapphire glass
* 3 size Camera skids for different pipe diameter use(110, 154, 230mm)

2 Havey-Duty Cable Reel
Amphibious Pipe Camera, Inspection Camera, and Pipe Inspection System

* New design Counter device on the cable reel error rate less than 0.1%
* Stainless steel Cable Reel size 770 X 830 X 360 mm
* 120m Φ 9 mm fiberglass rod push cable ( 60m optional)

3 Portable Stainless steel bullet Camera with reel
* Camera head size Φ23 x 45mm for pipe Φ 25mm to 80mm
* Fiberglass Φ5.2mm rod push cable reel 20m (30m, 40m optional)
* Reel size 310mm x 110mm

4 Monitor
Amphibious Pipe Camera, Inspection Camera, and Pipe Inspection System

*10 inch HD LED monitor
* Display model: 4:3
* Visible angle: horizontal & vertically 170°
* Power supply DC 12V

5 DVR Control Box
* DVR power supply 12V DVR work current 200mA
* Storage medium SD card (8G SD card)
* Li-ion Battery power supply (18650 x 9 pcs  6600 mAH)
* USB jack for Keyboard
* MIC on / off button and earphone output jack ( earphone bud included)

6 Unit control carrying case
* ABS engineering carrying case size: 520mm x 435mm x 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum

Our Service:

1. Your any inquiries will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. Distributoership are offered for your unique design and some our current models.
4. Best Quality & Best Service with competitive price.
5. All regular products can give 2 years warranty.

Our Company:

1. We are China leading and professional pipe inspection camera Manufacturer.
2. Our product quality policy is that each shipment with 2 years guarantee and 7 days unconditional returns.
3. Positive team with full experiences in product specification and producing.

Application:

1.    WATER SUPPLY
2.    WASTE WATER
3.    ELECTRICAL AIR CONDITIONER
4.    CABLE DUCTING
5.    DUCTED VACCUM SYSTEMS
6.    PLUMBING
7.    IN BUILDING

Thanks for scanning our product, your inquiry or feedback will be highly appreciated.
Looking forward to supporting you!
If you want to know more detail information about us, welcome to visit our company website:
https://wwwvicam.cn/
