Durable Industrial Pipe Inspection, Camera Inspection Equipment
- Payment Type:
- L/C, T/T, Paypal, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Shenzhen, China |
|---|---|
| Payment Type: | L/C, T/T, Paypal, Western Union |
Product Description
Product Description

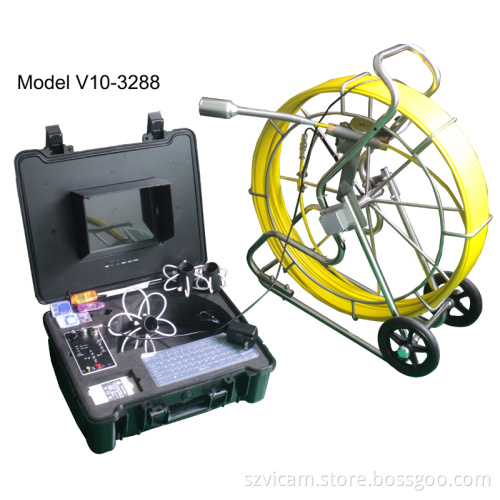

Durable Industrial Pipe Inspection, Camera Inspection Equipment
1. Detachable Camera Head
* 1/3" Color CCD 600 TV lines
* Camera size Φ 50mm X 88mm for pipe Φ 55mm to 600mm
* Waterproof: Yes, IP68
* Self-levelling image
* Field of view: 90°
* Camera lighting: 18 high intensity white LED
* Camera window: Sapphire glass
* 3 size Camera skids for different pipe diameter use(110, 154, 230mm)
2. Monitor
*10 inch HD LED monitor
* Display model: 4: 3
* Visible angle: Horizontal & vertically 170°
* Power supply DC 12V
3. Inspecting & DVR Control Box
* Power supply 12V
* DVR work current 200mA
* Storage medium SD card (8G SD card included)
* Li-ion Battery power supply pack (18650 x 9 pcs 6600 mAH)
* Charging time 5 hours, working time 6 hours
* USB jack for waterproof Keyboard (Keyboard included)
* MIC on / off button and earphone output jack ( earphone bud included)
4. Heavy-Duty Cable Reel with Meter Counter
* New design Counter device on the cable reel error rate less than 0.1%
* Stainless steel Cable Reel size 770 X 830 X 360 mm
* 120m Φ 9 mm fiberglass rod push cable ( 60m optional)
5. Unit control carrying case (HD LED monitor, DVR and Power supply)
* ABS engineering carrying case size: 520mm X 435mm X 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum
Company information
Backed by Cyberia SAS and Shenzhen Institutes of Advanced Technology
Vicam Mechatronics Co. Ltd is located in Shangxue Industrial Park in Shenzhen, south China, specializing in the design, manufacture and assembly of video inspection systems. We have introduced international advanced technology, and designed and produced various video inspection cameras. Most of our products sell well in Europe, the US, Australia, the Middle East, South Africa and South America. In the process of development, we have got very important technical support from Cyberia SAS and Shenzhen Institutes of Advanced Technology.
Can be Used in Complex Applications and Hazardous Areas
Our main product range includes portable pipeline video inspection systems, industrial and city underground pipe video inspection systems, special video inspection cameras and CCTV robots for complex applications and hazardous area rated environments.
Our tenets are to rely on the advanced technology, to meet the global market demand, and to provide good quality products and good services to all our customers.
Contact Us Today
For more information about our products and services, visit our Made-in-China Online showroom and then contact me.
1. Detachable Camera Head
* 1/3" Color CCD 600 TV lines
* Camera size Φ 50mm X 88mm for pipe Φ 55mm to 600mm
* Waterproof: Yes, IP68
* Self-levelling image
* Field of view: 90°
* Camera lighting: 18 high intensity white LED
* Camera window: Sapphire glass
* 3 size Camera skids for different pipe diameter use(110, 154, 230mm)
2. Monitor
*10 inch HD LED monitor
* Display model: 4: 3
* Visible angle: Horizontal & vertically 170°
* Power supply DC 12V
3. Inspecting & DVR Control Box
* Power supply 12V
* DVR work current 200mA
* Storage medium SD card (8G SD card included)
* Li-ion Battery power supply pack (18650 x 9 pcs 6600 mAH)
* Charging time 5 hours, working time 6 hours
* USB jack for waterproof Keyboard (Keyboard included)
* MIC on / off button and earphone output jack ( earphone bud included)
4. Heavy-Duty Cable Reel with Meter Counter
* New design Counter device on the cable reel error rate less than 0.1%
* Stainless steel Cable Reel size 770 X 830 X 360 mm
* 120m Φ 9 mm fiberglass rod push cable ( 60m optional)
5. Unit control carrying case (HD LED monitor, DVR and Power supply)
* ABS engineering carrying case size: 520mm X 435mm X 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum
Company information
Backed by Cyberia SAS and Shenzhen Institutes of Advanced Technology
Vicam Mechatronics Co. Ltd is located in Shangxue Industrial Park in Shenzhen, south China, specializing in the design, manufacture and assembly of video inspection systems. We have introduced international advanced technology, and designed and produced various video inspection cameras. Most of our products sell well in Europe, the US, Australia, the Middle East, South Africa and South America. In the process of development, we have got very important technical support from Cyberia SAS and Shenzhen Institutes of Advanced Technology.
Can be Used in Complex Applications and Hazardous Areas
Our main product range includes portable pipeline video inspection systems, industrial and city underground pipe video inspection systems, special video inspection cameras and CCTV robots for complex applications and hazardous area rated environments.
Our tenets are to rely on the advanced technology, to meet the global market demand, and to provide good quality products and good services to all our customers.
Contact Us Today
For more information about our products and services, visit our Made-in-China Online showroom and then contact me.
