Mt110 Quadband Mini Waterproof GPS Tracker with Sos Safe Guard Ankle Wrist GPS Tracker for Prisoner, Offender, Person and Pets

MT110 QUADBAND MINI waterproof GPS Tracker with SOS Safe guard Ankle wrist GPS tracker for prisoner, offender



Products overview:

Thanks for purchasing our product!

It is an industry waterproof, small, light tracker.

It is easy to take and specially designed for field staff, security guard, old man, Business personnel and pet.

Build in U-blox GPS module, GPRS module and low power ARM processor.




Features and Functions:
Waterproof (waterproofing grade: IP67)
AGPS position assisted
SOS alarm (LBS position assisted)
Two-way communication
Monitoring mode
Pet mode
Long standby time mode
SMS and GPRS (TCP/UDP) communication
Support up to 5 authorized cell phone numbers
Real time tracking
SOS emergency calling
Geo-fence alarm
Over speed alarm
Low battery alarm
Vibration alarm
Data Logger in no GSM signal area using Micro SD c HNM Vard (Max: 2GB)
Belt-off alarm

Specifications:

Items
Specification
Charging Voltage
DC 4.8-5.5V/500mA
Battery
Rechargeable, lithium-polymer battery 750mAh battery 3.7V
Dimension
61mmx49mmx22mm
Weight
67g
Operating Temperature
-25° C to 60° C
GSM Module
Quad Band GSM 850/900/1800/1900MHz
GPS Chipset
Ublox-6M
Telit–SL869(Glonass+GPS)
Memory
Micro SD card (Max: 2GB)



Overview:

What is in the packge:

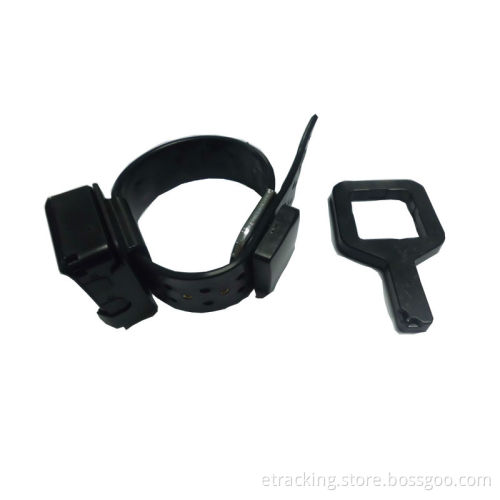

How to use the belt:


VIEW:



LED status, ports and buttons description:




Blue LED — GSM LED
Blue LED flashing 0.5s on & 0.5s off
Initializing
Blue LED flashing 1s on & 3s off
Registered to GSM network
Red /Yellow LED — Power LED
The red LED is always on
Charging
The red LED turn Yellow
Fully charged
Green LED — GPS LED
Green LED flashing 1s on & 3s off
Positioning success
Green LED flashing 1s on & 1s off
Searching for satellite signal
Button
On/Off button
Press for 3s to turn tracker on/off
CALL button
Press for 1s to pick up a call, press for 3s to call to an authorized number (vibration touch for calling)
SOS button
Press it for 3s to send an alarm SMS with coordinates
Other ports
Main power switch
Slide switch to ON position to power on tracker
SIM card and micro SD card slots
Insert SIM and micro SD card
Micro USB port
For setup the parameter and firmware upgrade


Tracking platform: Free for 3 months
https://hk.gpstotrack.com/gps
Test account: MT110test
Password: 123456
