Tracking device for heavy machinery equipment, construction machines and vehicles GVT369 Remote oil/power cut-off GPS TRACKER

GVT369 is a GPS/GPRS based tracking device designed for heavy machinery equipment, construction machines and vehicles.

Through GPS and GSM or GPRS communication, GVT369 can get its position and send the position data to your telephone or sever for personal tracking or fleet management.

With additional MIC, GVT369 can be configured to monitor surroundings.

GVT369 supports SOS button to send SMS alarm for rescue, has 2 digital outputs, 3 digital inputs and 2 analog inputs for different reports and applications.

The device has the following features and functions:

SMS/GPRS(TCP/UDP) communication
Track on demand
Track by time interval
Power saving moSOS button for immediate rescue and alarm
Geo-fence alarm
Speed limit alarm
Vibration alarm
Low battery alarm
No GPS signal alarm
Build-in 4M data Logger
Voice surveillance (optional)
Two-way voice communication (optional)
2 digital outputs, 3 digital inputs and 2 analog inputs
Ignition detection
Oil detection (optional)
Remote oil/power cut-off (optional)
Power cut-off alarm

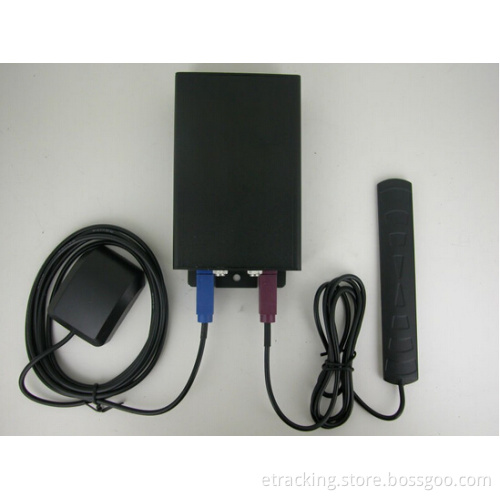

Package Include:

GVT-369 main unit with battery
USB Cable
GPS Antena
GSM Antena
I/O Cable
CD

Optional accessories:
Oil sensor
Relay

Items	Specification
Power Supply	DC 7 - 24 V/ 3A
Backup Battery	Rechargeable 1 2 00 mA h battery (3.7V),
Normal Power Consumption	50mA/h
Dimension	124 mm X 66 mm X 27mm
Weight	210 g
Operating T emperature	-20° C to 55°C
Humidity	5% to 95% Non-condensing
GSM M odule	Quad Band GSM 850/900/1800/1900Mhz
GPS Chipset	L atest GPS chipset
GPS Sensitivity	-159 dB
GPS Frequency	L1 1575.42MHz
C/A Code	1.023 MHz chip rate
Channels	20 channel all-in-view tracking
Position Accuracy	< 15 M 2D RMS
Velocity Accuracy	0.1 M/S
Time Accuracy	1 us synchronized to GPS time
Reacquisition	0.1 ms
Hot S tart	1 sec ., average
Warm Start	35 sec ., average
Cold Start	37 sec ., average
Altitude Limit	18,000 meters (60,000 feet) max.
Velocity Limit	514 meters/second (1000 knots) max.
Acceleration Limit	Less than 4g
Work T ime using backup battery	12 hours in normal mode and 5 5 hours in power-saving mode
Memory	32M-BIT flash memory
LED	3 LED lights to show power, GPS, GSM and other status.
Button	one SOS button for making phone calls and sending SMS
Interface	2 digital output s ; 3 digital inputs (all positive triggering); 2 analog inputs .
