Product Description
Product Description
2014 Electronic Component Used For Remote Control , equipemnt , devices Made In China Rotary Potentiometer/ encoder / tact switch / trimmer potentiometer / slide potentiometer with Competitive price and Best Quality

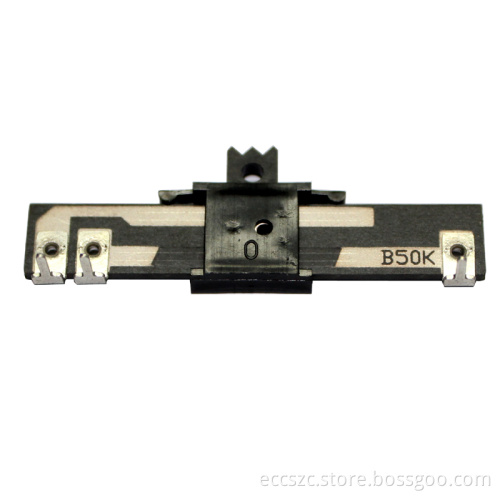

Vertical Terminal Signal Circuit Slide Potentiometers (N--2N-A)1.Product Description slide potentiometers
(1)Slide Potentiometer Electronics components
Electorinics china are leading potentiometer supplier in china.we are
specializing in producing and developing potentiometers,Slide potentiomters
Encoders,Switchs for many years.With competive price and high qualiy.
(2)Slide Potentiometer (N--2N-A ) Electronics components
potentiometer specification:
1.Metal shaft style
2.Carbon element.
3.Wide range of resistance tapers
4.Asorted pin layout
4.Defetive rate≤1‰; Rotation(sliding) life ≥10,000 cycles
(3)Electronics characteristics:
Operating Force: 0.2-2N (20-200gf)
Stopper Strength : 50N (5kgf) measuring point = 5mm
Lever Wobble 20mm max
Bending moment : 250 gf.cm
Push Pull Strength : 30N (3kgf.cm)
Click Slip - 0ut Force : 20-200gf
Lever Deviation : 0.5 max. (one side)
Total Resistance:5K Ω-2MΩ
Total Resistance tolerance:+/-20% more than 1mΩ : +/-30%;
Resistance Taper: A.B.C.D.K.W.RD
Max.Operating Voltage:Linear Taper B:AC500V ;Other Tapers:AC 250V ;
Rated Power:Linear Taper B:0.5W ;Other Tapers:0.25W ;
Sliding noise: less than 100mV
Insultated Resistance: More than 10OMΩ at DC 500V)
Withstand Voltage:1 min at AC 500V ;
Residual Resistance: Term.1~2:less than 10 Ω ;Term.2~3: less than 10Ω
Rotational Angle: 270° -300°
2.Packing: Electronics components
100PCS/Bag, 800PCS/Box, 4800PCS/Carton
Dimension of Carton: 47cm*35cm*40cm
Pls kindly note that we are an end manufacturer,we can customize the potetiometers according to your needs, please feel free to contact us. We will provide hight quality and best price to you!
