Product Description
Product Description

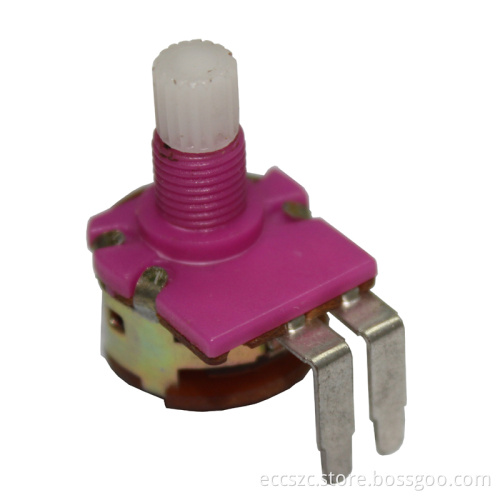

2014 electronics component which can be used for audio equipment, computer control and transducer rotary potentiometer / slide potentiometer / encoderBrand New electronic component Rotary Potentiometer (R1613S- D2)
1.Product Description
(1)potentiometer
Electronics china are leading potentiometer supplier in china.we are
specializing in producing and developing potentiometers,Slide potentiometers
Encoders,Switchs for many years.With competive price and high quality.
(2)Rotary potentiometer (R0901 N- D - / R0902N- D - ) )
potentiometer specification:
1.Metal shaft style
2.Carbon element.
3.Wide range of resistance tapers
4.Asorted pin layout
4.Defetive rate≤1‰; Rotation(sliding) life ≥10,000 cycles
(3)Electronics characteristics:
Total Resistance:Single Unit:500Ω-1MΩ;
Total Resistance tolerance:+/-20% more than 1mΩ : +/-30%;
Resistance Taper: A.B.C
Max.Operating Voltage:Linear Taper B:AC500V ;Other Tapers:AC 250V ;
Rated Power:Linear Taper B:0.5W ;Other Tapers:0.25W ;
Sliding noise: less than 100mV
Insultated Resistance: More than 10OMΩ at DC 500V)
Withstand Voltage:1 min at AC 500V ;
Residual Resistance: Term.1~2:less than 10 Ω ;Term.2~3: less than 10Ω
Rotational Angle: 270° -300°
Application:
Are used in security products, audio-visual products,
Fitness products: treadmill, massage chairs, etc
Household appliances: TV, microwave oven, Rice cooker, electric wind,
electronic scales
Security products: video intercom, Monitor, etc.
2.Packing:
100PCS/Bag, 800PCS/Box, 4800PCS/Carton
Dimension of Carton: 47cm*35cm*40cm
Pls kindly note that we are an end manufacturer,we can customize the potetiometers according to your needs, please feel free to contact us. We will provide hight quality and best price to you!
