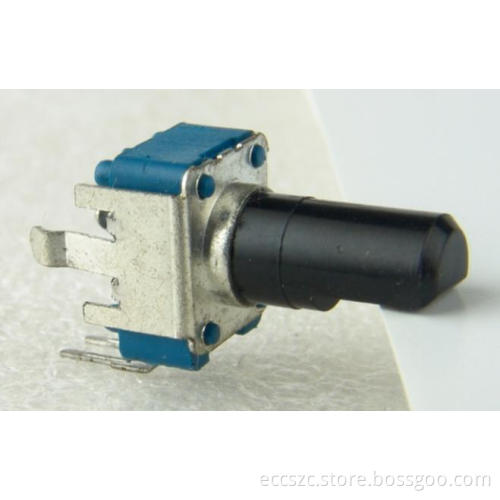

Rotary Potentiometer for DVD (R0901N-D)

2014 Electronic Component Used For Remote Control, equipemnt, devices Made In China Rotary Potentiometer/ encoder / tact switch / trimmer potentiometer / slide potentiometer with Competitive price and Best Quality

1. Product Description
(1)potentiometer
Electronics china are leading potentiometer supplier in china. We are
Specializing in producing and developing potentiometers, Slide potentiometers
Encoders, Switchs for many years. With competive price and high quality.

(2)Rotary potentiometer (R0901 N- D - / R0902N- D - ) )

Potentiometer specification:
1. Metal shaft style
2. Carbon element.
3. Wide range of resistance tapers
4. Asorted pin layout
4. Defetive rate≤ 1‰ ; Rotation(sliding) life ≥ 10, 000 cycles


(3)Electronics characteristics:
Total Resistance: Single Unit: 500Ω -1MΩ ;
Total Resistance tolerance: +/-20% more than 1mΩ : +/-30%;
Resistance Taper: A. B. C
Max. Operating Voltage: Linear Taper B: AC500V; Other Tapers: AC 250V;
Rated Power: Linear Taper B: 0.5W; Other Tapers: 0.25W;
Sliding noise: Less than 100mV
Insultated Resistance: More than 10OMΩ At DC 500V)
Withstand Voltage: 1 min at AC 500V;
Residual Resistance: Term. 1~2: Less than 10 Ω ; Term. 2~3: Less than 10Ω
Rotational Angle: 270° -300°


2. Packing:
100PCS/Bag, 800PCS/Box, 4800PCS/Carton
Dimension of Carton: 47cm*35cm*40cm

Resistance tolerance: +/-20%
Resistance taper: Linear (taper b)
Residual resistance: R≥ 250kω 0.1% max. Of total resistance 10kω
Rated power: 0.04w
Max. Operating voltage: 100v
Insulation resistance: 50mω Min. At 250v DC
Rotational noise; ≤ 100mv
Gang error: -40 -0 dB ≤ +/-3dB rotational life: >15, 000 cycles


Sample:
1. Sample: We can provide free samples for most of items.
2. Samples time: Need 3-5 days to preparing the samples,
Except some especially items.
Quality Guarantee:
1. Strictly quality Check before leave factory
2. We have ISO9001 ROHS certificates.

Advantage:
1. We are en end manufacturer
2. New design Accepted: As your requirement
3. Good Quality: Strict quality control and good reputation
5. Fast & Cheap Delivery: Big discount from express agent
(Long-term Contract with DHL, FedEx, EMS, UPS, TNT)

Pls kindly note that we are an end manufacturer, we can customize the potentiometers according to your needs, please feel free to contact us. We will provide hight quality and best price to you!
