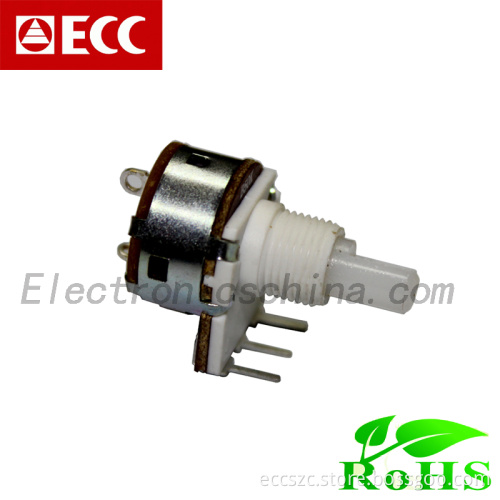

Rotary Potentiometer for Dimming Light (R1613S- C3)

Electronics china are leading potentiometer supplier in china.we are
specializing in producing and developing potentiometers,Slide potentiometers,Encoders,Switchs for many years.With competive price and high quality.

Rotary Potentiometer (R1612 / R1613 / R1614 / R1616 )

Rotary potentiometer Mechanical characteristics:
Total rotational angle: 280 degree+_5 degree
Rotational torque: 1-8mN. M(10-80gf. Cm)
Push pull strength: 50N(5kgf. Cm)
Rotation stopper strength: 0.3N. M(3kgf. Cm)
Shaft lever wobble: 0.8*L/20mmp-p MAX

Carbon potentiometer Electrical characteristics:
Total resistance: 1K Ohm-1M Ohm
Total resistance tolerance: +_20% more than 1MOhm: +_30%
Rated power: 0.05W
Max. Operating voltage: 50V AC/20V DC
Resistance tapper: A, B, C
Residual resistance: R>=250K Ohm 0.1% max, of total resistance
10K Ohm<R<250K Ohm 20Ohm max
R<=10K Ohm 10Ohm max
Slide noise: Less than 100mV
Insulation resistance: More than 100M Ohm at DC 250V
Withstand voltage: For 1 minute or more at AC 250V

Durability:
Rotational life: 5, 000 cycles
Pls kindly note that we are an end manufacturer,we can customize the potentiometers according to your needs, please feel free to contact us. We will provide hight quality and best price to you!




Potentiometers Sample:
1. Sample: We can provide free samples for most of items.
2. Samples time: Need 3-5 days to preparing the samples,
Except some especially items.
Quality Guarantee:
1. Strictly quality Check before leave factory
2. We have ISO9001 ROHS certificates.

Advantage:
1. We are en end manufacturer
2. New design Accepted: As your requirement
3. Good Quality: Strict quality control and good reputation
5. Fast & Cheap Delivery: Big discount from express agent
(Long-term Contract with DHL, FedEx, EMS, UPS, TNT)
