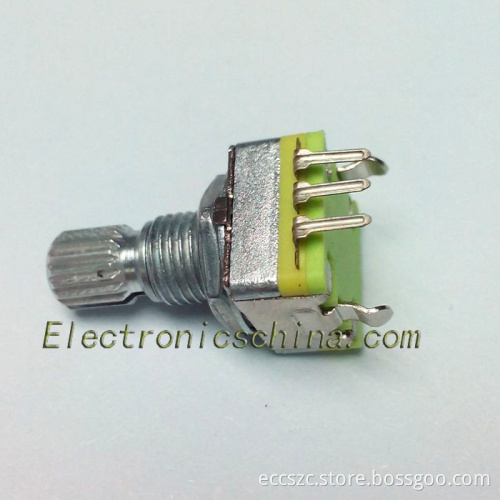

11mm Rotary Encoder for Devices

1. Product Description
Rotary Encoder

Electorinics china are leading potentiometer supplier in china. We are
Specializing in producing and developing potentiometers, Slide potentiomters
Encoders, Switchs for many years. With competive price and high quality.

2. Rotary Encoder Mechanical characteristics:
Total rotational angle: 360 degree
Click torque: 4-20mN. M(40-204gf. Cm)
Push pull strength: 70N(7kgf)
Ratings: 5V DC, 0.5mA
Withstand voltage: 50V AC
Insulation resistance: More than 10M Ohm at DC 500V
Contact resistance: 1 Ohm max
Resolution A. B 24 pulses/Rotation
Phase-difference: 0.25T+_0.1T(must be measured without detent)

3. Rotary Encoder Durability:
Rotational life: 100, 000 cycles
Packing:
MOQ; 1500PCS
100PCS/Bag, 500PCS/Plastic Box, 3000PCS/Carton
Dimension of Carton: 47cm× 35cm× 40cm


Rotary Encoder Sample:
1. Sample: We can provide free samples for most of items.
2. Samples time: Need 3-5 days to preparing the samples,
Except some especially items.
Quality Guarantee:
1. Strictly quality Check before leave factory
2. We have ISO9001 ROHS certificates.

Rotary Encoder Advantage:
1. We are en end manufacturer
2. New design Accepted: As your requirement
3. Good Quality: Strict quality control and good reputation
5. Fast & Cheap Delivery: Big discount from express agent
(Long-term Contract with DHL, FedEx, EMS, UPS, TNT)
