Product Description

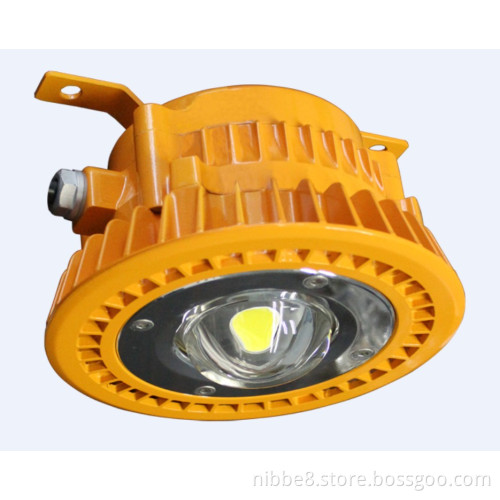

Explosion Proof Downlight

1. LED Explosion proof downlights using in hazardous locations.
2.3 years warranty, bridgelux LED chip.
3. Patented design for heat dissipation to ensure life of light source up to 50000 hours.
4. Low power consumption while high light efficiency, power consumption just 20% as much as high pressure sodium lamp, mercury lamp at the same luminous condition, it saves energy more than 75% than that traditional light.
5. Die casting aluminum housing, with anti-static and anti-corrosion coating, high explosion-proof degree of flameproof type; Dust-proof, waterproof; Lens made of bulletproof PC which is thermal resistance, corrosion resistance, high light transmission.
6. Advanced quadratic light distribution design result in high uniformity of illumination and good lighting quality, clear lighting effect without a double image.
7. Beautiful appearance, several types of installation methods available.

Product name	Explosion proof downlight
Power Consumption	15W/20W/25W
Input Voltage	220V AC(applied for 95-265V)/ 24V DC
Frequency	50Hz(applied for 47-63 Hz)
Beam Angle	120° or 120° in horizontal 60° in vertical
Explosion-proof Grade	Ex d II C T6
Corrosion-proof Grade	WF2
IP Grade	IP67
Power Factor	> 0.90
Total Harmonic Current	< 20%
Lamp Efficiency(%)	≥ 90%
Color Temperature(K)	Warm white: 2700-4000K; Pure white: 5000-6500K
Junction Temperature(TJ))	< 55° C
Color Rendering Index(CRI)	Ra> 70
Light Effect	> 80lm/W
Ambient Environment	Temperature: -30° C_ 55° C; Humidity: 10-90%RH(25° C)
Storage Temperature	-40° C-60° C
Lifespan	> 50000Hs
Material	Aluminum Alloy
Cable Entry	Φ 8~Φ 14mm
Threaded Fitting	G3/4"
Installation Height	2~4m
Net Weight	1.2Kg
Certificate	CE& RoHS, China National Explosion-proof Certificate
