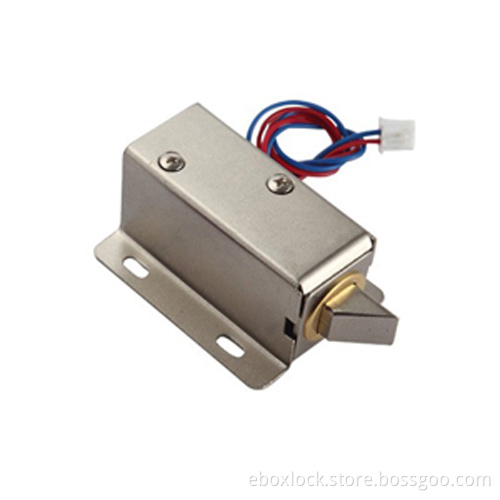

Electric Bolt Lock for Drawer and Cabinet (MA1206)

Electric Bolt Lock (MA1206) is a mini metal constructed lock specially designed for keyless entry of cabinets, drawers and lockers. The bolt is 360 degree reversible and surface mounting either vertically or horizontally offers easy and flexible installation. The electric bolt lock is compatible with any access control system or standalone cabinet locking system. The electric bolt lock (MA1206) is energy saving, cost efficient, robust, easy to install and suitable for one or multiple cabinet applications.

Features
360 degree reversible bolt
Superior heavy duty metal construction
Nickel-plated steel housing
Surface-mounted compact electric lock
Accepts access control signals from wireless RF key fobs or proximity cards, numeric keypads, card readers,
Fitted to steel furniture, mail box and drawers etc.


Specification
Operation Voltage                     12VDC ±10%
Power Consumption                  12V DC   600mA
Operation Mode                         Fail Locked
Length of tongue                       10mm
Maximum power on time           Less than 30 seconds
Cycle Rating                              600,000
Working Temperature               -25ºC ~ +80ºC
Dimension                                  64mm*40mm*28mm
Weight                                       150g
Protection Class                         IP20


Applications
The solenoid cabinet lock is ideal for various applications as following:
Steel cabinet or metal furniture
Electronic lockers
Retail display cases and drawers
Filing cabinets
Utility cabinets and drawers
Museum display cases
Pharmaceutical cabinets and drawers
Electronic letter box and delivery Locker
