Newest version Autel MaxiTPMS TS501 TPMS DIAGNOSTIC and SERVICE TOOL

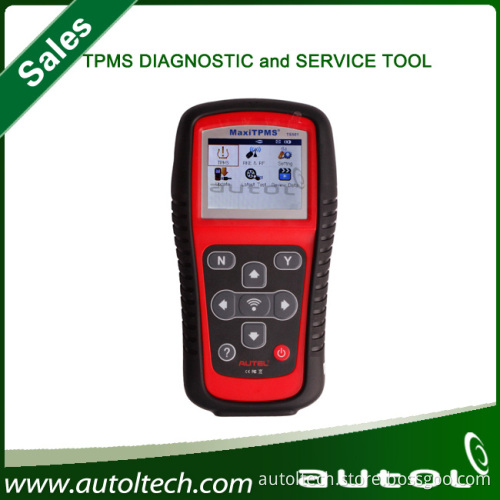

MaxiTPMS® TS501
The MaxiTPMS® TS501 diagnostic & service tool is specially designed to program vehicles that do not have a TPMS relearn facility in the ECU. It is also able to work with ALL known magnetic and frequency triggered tire sensors for ALL vehicles sold worldwide.

More Information

Product Features
Program vehicle ECU to learn sensor IDs and positions
Activate magnetic, frequency and tire deflation triggered sensors using
125 kHz continuous or modulated wave signals
Receive 315 MHz, 433.92 MHz and 309MHz signals
Read sensor ID from vehicle ECU
Read/clear codes of TPM system and reset malfunction indicator light
Built-in rechargeable Li-ion battery
On-screen code definitions
Simplify the diagnostic process including four and five wheel vehicles by
showing vehicle graphs
Decode sensor data and provide visual and audible responses to confirm
sensors are working properly
Interpret data including sensor ID, tire pressure, temperature, battery status
and OE part number
Pre-selection process offer faster activation and diagnostics
Accurate diagnosing results - a tool users can trust
1-year free upgrade on the internet via USB port
Easy-to-use with intuitive navigation and step-by-step on-screen instructions
Print TPMS sensor data via PC
Automatic power-off to preserve battery life
Proper LF signal to prevent being fooled by other RF signals
Save up to 16 TPMS records
If a failed sensor is detected, the tool displays the replacement part number

Contents
MaxiTPMS® TS501
OBD II cable
Molded plastic case
USB cable
User"s manual
Battery
CD software
Magnet (For early model TPM sensors)
