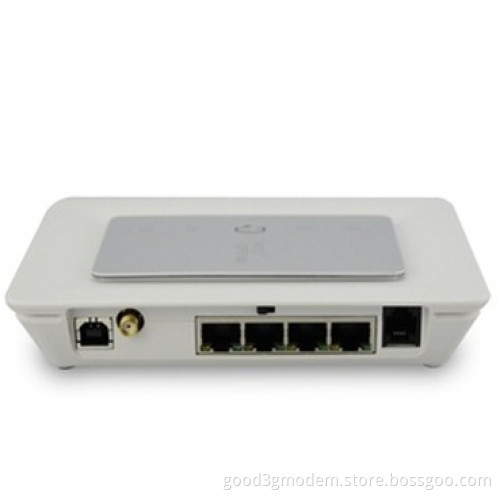

Huawei B220 3G Wireless Router Support SIM WCDMA Network

Hardware

Network Type

HSUPA/HSDPA/WCDMA 2100M/900M,

GSM/GPRS/EDGE Quad Band 1900M/1800M/900M/850M

Data Rates

DL: 7.2Mbps, UL:2mbps

Interface

4 x RJ-45 for 10/100 Mbps, 1 x RJ11 analogue port

1 x Reset button(Reset & Factory Defaults), 1 x Power DC Jack

Power

5V 2A, DC Power

Dimensions

155x115x28mm

Package Dimensions

237x185x57mm

Product Weight

0.5kg

Package Weight

0.65kg

Package

3G Wireless Router, Power adapter, Mount Kit

Wireless

Standard

IEEE 802.11g, IEEE 802.11b

Speed

11b:1/2/5.5/11Mbps

11g:6/9/12/18/24/36/48/54Mbps

Frequency

2.4~2.4835GHz

U.S., Europe and Japan product covering 2.400 to 2.4835 GHz, programmable for different country regulations

Security

WPA-PSK/WPA2-PSK,WPA/WPA2,64/128/152 WEP

Channel

1 ~ 13

Out Power

802.11g(± 1.5dBm)

·      25dBm @ 6~24Mbps

·      24dBm @ 36Mbps

·      23dBm @ 48Mbps

·      23dBm @ 54Mbps

802.11b(± 1.5dBm)

·      26dBm @ 1~11Mbps

Modulation

OFDM = BPSK,QPSK, 16-QAM, 64-QAM

DSSS = DBPSK, DQPSK, CCK

Sensitivity

     802.11g           802.11b

 - 90dBm @ 6Mbps   - 92dBm @ 1Mbps

- 72dBm @ 54Mbps - 85dBm @ 11Mbps

Security

WEP Encryption-64/128/152 bit

WPA/WPA2 Personal (WPA-PSK using TKIP or AES)

WPA/WPA2 Enterprise (WPA-EAP using TKIP)

Hide SSID

Software

DHCP

DHCP Server, DHCP Client

Network

Port Mapping, DMZ Host, Statics Routing, DDNS,UPNP

Firewall

IP Address/Port/MAC/URL Filter, ANI-DoS,

Management

Firmware Upgrade and backup, factory Reset, Restart, WEB management, log management

OS Support

Windows XP/XP64/Vista/Vista64, Windows 7/Windows 8, MAC OS, Linux
