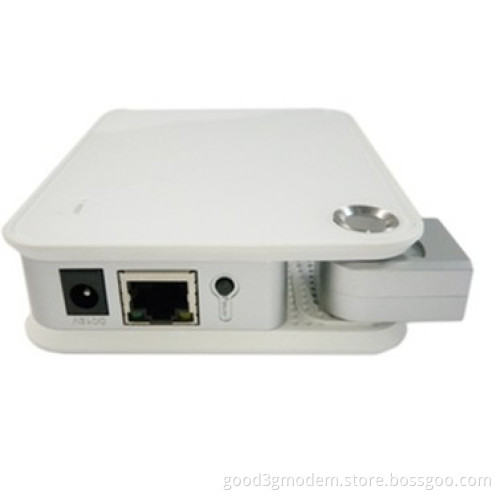

Huawei D100 Mini 3G Router Support USB Wireless Modem

1:Compatible with Huawei USB Modem
2:Supports Multi-users
3:Supports Wi-Fi speed rates of up to 54Mbps
4:Supports one RJ45

Huawei D100 USB Modem Router Features
Compatible with Huawei USB Modem
Supports Multi-users
Supports Wi-Fi speed rates of up to 54Mbps
Supports RJ45: one LAN/WAN convertible port
Standard: IEEE 802.11 g/IEEE 802.11b/IEEE 802.3/IEEE802.3U
Antenna: built-in antenna
Transmitting Power: 19dBm(maximum)
User Interface: one Ethernet interface(RJ45)
One USB interface of Type A
No installation ,plug and play
Dimensions: size:112mm x91mm x27mm
Weight:200g


manufacturer:
Huawei
model:
D100  (plate-shaped housing)
3G integrated:
- (external Huawei USB-modem required)
GSM frequency bands:
-
UMTS frequency bands:
-
HSDPA:
-
HSUPA:
-
EDGE:
-
GPRS:
-
CSD:
-
connector for ext. antenna:
-
connector type:
-
internal antenna diversity:
-
voice telephony:
-
extensions:
-
WiFi:
802.11b/g
WiFi antenna:
2 internal antennas
connector for ext. WiFi ant.:
-
WDS support:
-
LAN:
1 x RJ45 (10/100 MBit/s)
power supply:
DC 12V 500mA
rebranded versions:
O2 Surf Station (Germany)
3WLAN Adapter D100 (Austria)
T-Mobile Share Dock (UK)
Wind (Italy)

A more comprehensive data sheet with more detailed specifications can be downloaded here.
supported USB-modems didukung USB modem
Huawei E156, E156G Huawei E156, E156G
Huawei E160, E160G, E160E, E160X, K3565(-H) Huawei E160, E160G, E160E, E160X, K3565 (-H)
Huawei E169, E169G, E169V, K3520 Huawei E169, E169G, E169V, K3520
Huawei E170 Huawei E170
Huawei E172 Huawei E172
Huawei E176 / T-Mobile web'n'walk Stick IV Huawei E176 / T-Mobile web'n'walk Stick IV
Huawei E1762 / BILDmobil Speedstick Huawei E1762 Speedstick / BILDmobil
Huawei E220 Huawei E220
Huawei E270 Huawei E270
Huawei E272 Huawei E272
Huawei K3715 Huawei K3715
Huawei E1750 Huawei E1750
Huawei E122 Huawei E122
Huawei E1550 Huawei E1550
Huawei E180 Huawei E180
presumably all other recent Huawei USB-modems mungkin semua lainnya baru-modem USB Huawei
