Mf10 Support 3G Modem RJ45 LAN USB DC Connector Mf10 3G Router

MF10 Router
1. USB connect the Computer
2. WiFi 802.11 b/g
3.2 Mbps Ethernet ports
4.5 Access

MF10 Router
1. USB connect the Computer
2. WiFi 802.11 b/g
3.2 Mbps Ethernet ports
4.5 Access

Features:
* USB to connect the modem
* WiFi 802.11 b/g
* 2 × 100 Mbps Ethernet ports
* Supports up to 5 clients WiFi
By default, the administration interface is available in HTTP: //192.168.0.1 with admin username and password.
Physical characteristics
Size
93mm X 70mm X 25mm
Indicator LED
Support four LEDs: Power, WLAN, PPP and WPS
Temperature
Storage: -20° C ~ +60° C
Operation: -10° C ~ +55° C
Button
Support two buttons: WPS and Reset
MTBF
>30000H
Power
Power Supply
Primary driven by an AC connection (uses an external adapter)
Input voltage: 100V~240V, 50Hz~60Hz
Adapter Spec.
Rated voltage: 5V DC± 10%
Rated current 2A
Power Consumption
ON State: MAX 6.8W
OFF State: MAX 0.5W

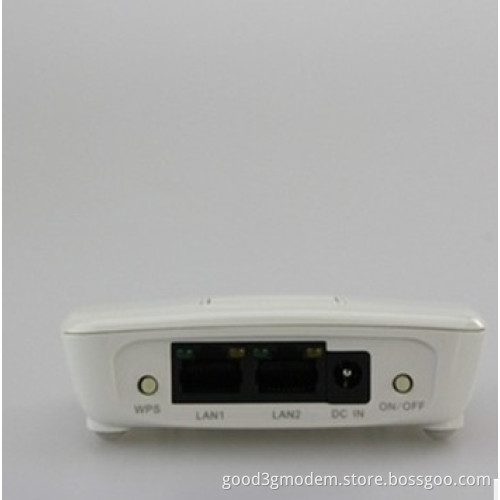

Interface Port
LAN
RJ45 X 2 (10BaseT/100BaseTX with Auto-MDIX IEEE 802.3)
USB
High Speed USB 2.0
Interface (For USB Modem X 1)
Main board for routing
Soc Processor
RT3050
Highly-integrated networking security/application processor
300Mbps PHY data rate
Support boot from 8/16-bit parallel NOR type Flash
Embedded a 7-port Ethernet switch and a 5 shot 10/100Mbps PHY
Hardware packet processing acceleration
Support 16/32-bit SDR SDRAM
SDRAM data 31: 16 are pins shared with GPIO
Memory
SDRAM 16MByte
FLASH 8MByte
Internal Power
3.3V 0.9A
1.5V 0.7A
1.8V 200mA
5V 500mA
MF10 3G Router supported Modems:
* K3765 and K3765-Z
* K3565
* K3520
* E220
* E172
MF626
* MF627
* Huawei E156G
* Huawei E170 (not officially listed)
