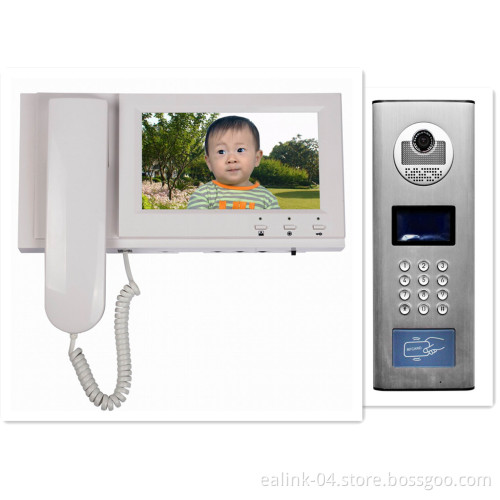

Building Apartments Intercom Video Door Phone Home Security (M1607BCR+D21BD)

Building apartments Intercom Video Door Phone home security

7" touch screen
Support 4 wires connection

Feature:
1.4-wire, 7'' color digital LCD(touch screen)
2. Support lock control
3.1/4'' color CCD camera
4. Max support 9, 999 indoor monitors+ 1 outdoor panel+8 CCTV cameras

Detail Description:
Indoor monitor
1. Intercom function
2. Door monitoring function
3. Lock control
4. Optional volume adjustment
5. Appropriate color, contrast and brightness
6. Don't disturb choice
7. Visitor-call transfer
8. Indoor monitor listening function.
9. Image format convert 16: 9 to 4: 3
10. Make broadcast
11. Video and audio recording
12. Multimedia manager
13. Picture capture
14. Mechanical key
15. TFT resolution: 800x480

Outdoor panel
1. Metal case
2. High-quality circuit for clear voice
3. Electric-controlled lock release
4. Wall mounted

Specification:
Indoor monitor
Display screen: 7'' color digital LCD (touch screen)
Resolution: >480TV lines
Power Supply: DC 15V 1A
Video input: 75omh, 1Vp-p, CCIR standard
Power consumption: 2.6W ~9 w
Wiring mode: 4 wires, polar
Dimension: 22019679mm
Video channels: 4

Outdoor panel
Subscribers quantity: 2
Camera CCD: 1/4' CCD
Construction: Surface
Operating temperature: - 20 C~+ 60 C
Connection: 4 wires
Lock control: Yes
Power: 18V-36V
Dimension: 366× 138.5× 55mm

Solution: 1 doorbell + 9, 999 monitors+8 CCTV Camera
