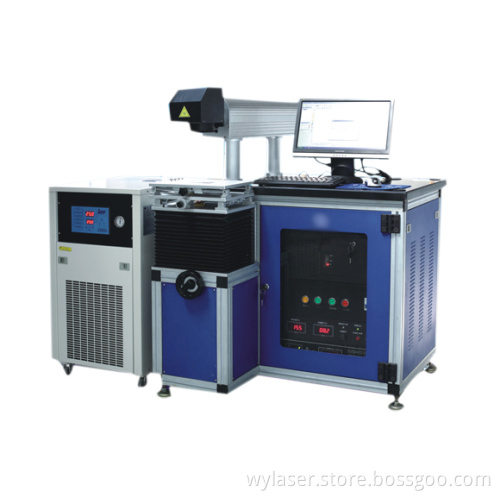

WY50LAT Series Laser marking machine (semiconductor)
WY50LAT series galvanometer-type laser marking machine is an equipment producing 1064nm wave length laser through YAG, and mark in the material through applying galavanometer scanning method, which is most advanced marking craft integrating laser technology, computer technology, electronic technology and precised mechanism technology. The technology is applied to all kinds of metal materials( Eg. Metal, alloy, composite materials, silicon chip and hard non-metal material, etc) and engrave beautiful and clear picture and mark, own extensive applied value in the field of brand promotion, product anti-counterfeiting, quality-tracing.

Laser device use semi-conductor laser pump ND: YAG as medium with 808nm wavelength, optoelectronic transforming quite efficient, producing good beam, with reliable performance and long lifespan. Furthermore, the machine also have great advantage of energy-saving, good marking effect, maintenance-free and etc.

Feature:
1. Modular design
(Laser device module, light scanning module, computer controller module, control box module, laser power module, Q switch power module, cooling system module) each module own independent running space, easy to direct-connect and reduce interruption caused by electromagnetic and hot temperature, ensue the system running long time stably.

2. Super precised light cavity design
Professional laser resonance cavity designing ensure high laser output frequency and best laser model, and reduce the dependence to the temperature.

3. Flexible control method
All control module own two control mode ( hand adjustment and program-control adjustment), which can satisfy different customer's needs. Refer to marking electric current, frequency and related parameter, you could adopt the method of hand adjustment.

4. Light route preview function, focus indication function
Add visible red light in the laser light bearing to indicate the position of laser beam, could reach the function of preview to the marking area. Add indicated focus red light, more easy to reach focus function.

5. Multi-function marking software
Strong picture-drawing and editing function.
Auto-linking to selected object, and easy to operation and view.
Support Truetype font, single line font, single dimension bar code and two dimension bar code.
Support 256 pens, and could set different processing parameter for different object.

Basic Technical Parameter:
Model WY50LAT /WY75LAT
Laser Medium ND: YAG
Laser power 50W/75W
Laser wavelength 1064nm
Repeated frequency ≤ 50kHz
Marking area 110× 110mm
Marking depth ≤ 0.3mm/≤ 0.5mm
Marking speed ≤ 7000mm/s
Min marking width 0.04mm/0.05mm
Min Character 0.2mm/0.3mm
Repeated Precision ± 0.005mm
Complete machine Max. Power 2KW/2.5KW
Power supply 220V/single phase/50Hz/15A
Working environment Temperature 5-28 degree, Humidity Measurement (Length X WidthX Height) 1100× 720× 900mm
Weight 150KG
