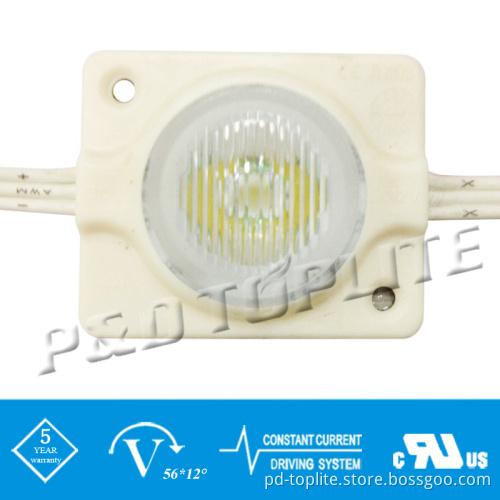

UL SMD 3535 1.44W IP67 Injection Waterproof LED Module by Len Big Power

Injection LED Module Series

Feature:

1. Waterproof: IP67
2. SMD3535 LED as lighting source
3. Wide view angle 56° *12°
4. Injection molding process
5. Constant Current Technology (CCT)
6. The exposed Aluminum plate for heat dissipation
7. Energy saving, Long life span


Application:

1. Channel letter lighting
2. Commercial standing lighting
3. Letter background lighting
4. Light box lighting
5. Logo lighting
6. Line/shape lighting

Dimension:


Notes:

1.3pcs as a group, 30pcs per chain (maximum)
2. No conductive intermediate signal line, the best intermediate signal line connection cut off part of it, which is easy to be installed and to avoid a short circuit.
3. All dimension units are millimeters.
4. All dimension tolerance is ± 0.5mm unless otherwise noted

Arrangement of modules:





Photos
