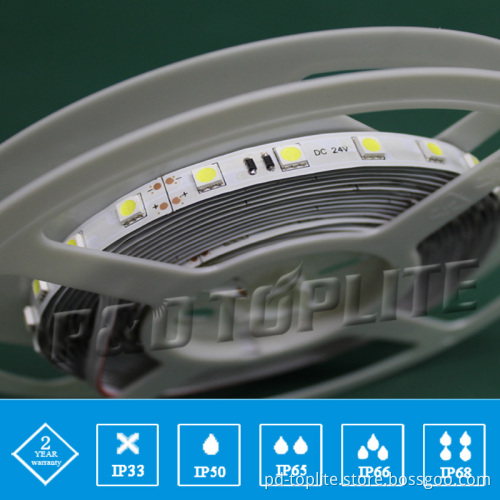

CE UL Constant Current SMD 5730 Flexible LED Strip

Introduction

Constant Current SMD5730 led flexible strip, using constant voltage 24V drive, high-brightness, low current, 7 leds can be cut, max available in 5 meters, its unique LED big one chip structure, make it in the heat sinking, lifetime, light decline in 3% -5% after 1000 hours, get a good control, three-year warranty.


Features:

1. SMD5630 LED as lighting sources.
2. Constant Current version to ensure long life cycle
3. No brightness difference from first part to last part with 5m continuous length
4. Can be working with DC24V to DC28V voltage
5. With DC24V constant voltage input, can be working with any DC24V power supply, no need of constant current dirver
6. Can be working with any DC24V PWM control system or dimmer. The application is very convenient.


Application:

1. Signage, channel, or light box lighting
2. Contour lightings, such as bridge, stairway, building marking
3. Decorative lighting for car, motorcycle, hotel, bar, amusement park, etc
4. Long-distance project but with inconvenient wiring;

Options for IP Rank and Installation

1. IP33 (Non-waterproof)
2. IP50 (PU Gel Coating)
3. IP65 (Silicone Tube)
4. IP66 (Full Silicone Tube) or IP66 (Parylene Coating)
5. IP68 (Silicone Tube with Glue inside) for option

Remark: For more details, Pls refer to the file named "Installation Instruction".


Dimension




Illustrative diagram:




Connection Diagram




Attention

1. Please make LED drivers compatible with flexible LED strips light before using.
2. To use LED strips with 5M in serial; In case of longer length, pls use them in parallel
3. Pls check if the power supply is in compliance with of the power requirements
4. Each roll asks for an independent power supply.
