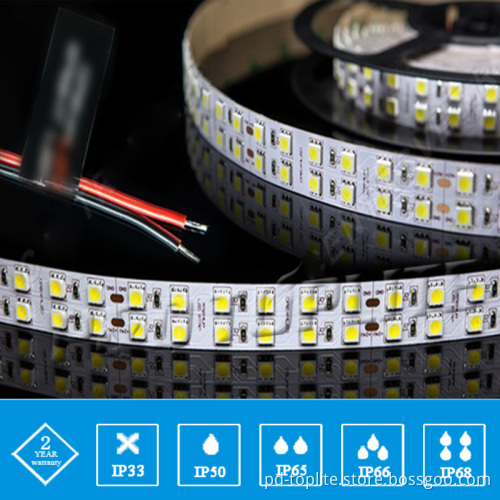

CE UL Double-Line SMD 5050 120 LED Per Meter Flexible LED Strip

Features:

1. SMD3528/5050 LED as lighting sources.
2. Soft FPC material as PCB board
3. Cuttable length: By every 12LEDs of SMD3528 (24VDC) or 6LEDs of SMD5050 (24VDC)

Application:

1. Signage, channel, or light box lighting
2. Contour lightings, such as bridge, stairway, building marking
3. Decorative lighting for car, motorcycle, hotel, bar, amusement park, etc
4. Long-distance project but with inconvenient wiring;

Options for IP Rank and Installation

1. IP33 (Non-waterproof)
2. IP50 (PU Gel Coating)
3. IP65 (Silicone Tube)
4. IP66 (Full Silicone Tube) or IP66 (Parylene Coating)
5. IP68 (Silicone Tube with Glue inside) for option

Remark: For more details, Pls refer to the file named "Installation Instruction".

Structure Drawing

A. FS-3528X-240



B. FS-5050X-120



Connection Diagram




Attention

1. Please make LED drivers compatible with flexible LED strips light before using.
2. To use LED strips with 5M in serial; In case of longer length, pls use them in parallel
3. Pls check if the power supply is in compliance with of the power requirements
4. Each roll asks for an independent power supply.
