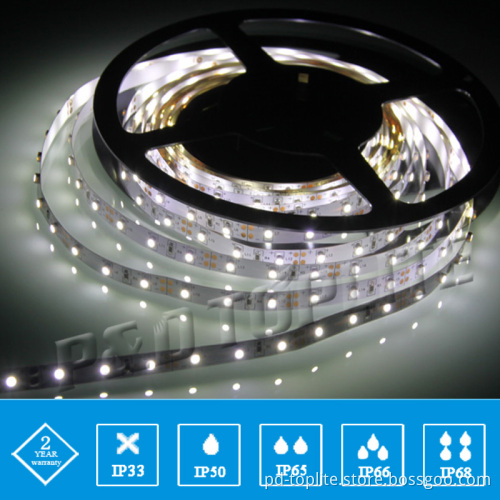

CE UL SMD 3528 60 LED Per Meter Flexible LED Strip

LED Flexible Strip: SMD3528, 5050, 2835, 3014 or 5630 as lighting source are optional. 12VDC and 24VDC are for your option. Besides non-waterproof IP33 strips, other waterproof ones are available: IP50 (PU Glue Coating), IP65 (Silicone Tube), IP66 (Parylene Coating), IP68 (Glue-irrigation mode: Silicone Tube with Glue inside). LED strips have a wide range of application: Signage, channel, light box lighting; Contour lightings,; Decorative lighting for car, motorcycle, hotel, bar, amusement park; Long-distance project but with inconvenient wiring, etc.

Features:

1. SMD3528 LED as lighting sources.
2. Cuttable length: By every 3 leds (12VDC) or 6 leds (24VDC).

Application:

1. Signage, channel, or light box lighting
2. Contour lightings, such as bridge, stairway, building marking
3. Decorative lighting for car, motorcycle, hotel, bar, amusement park, etc
4. Long-distance project but with inconvenient wiring;

Options for IP Rank and Installation

1. IP33 (Non-waterproof)
2. IP50 (PU Gel Coating)
3. IP65 (Silicone Tube)
4. IP66 (Full Silicone Tube) or IP66 (Parylene Coating)
5. IP68 (Silicone Tube with Glue inside) for option

Remark: For more details, Pls refer to the file named "Installation Instruction".

Structure Drawing



Connection Diagram


Attention

1. Please make LED drivers compatible with flexible LED strips light before using.
2. To use LED strips with 5M in serial; In case of longer length, pls use them in parallel
3. Pls check if the power supply is in compliance with of the power requirements
4. Each roll asks for an independent power supply.
