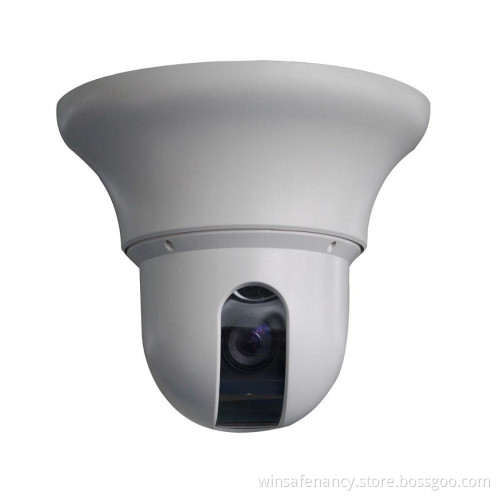

35X High Speed PTZ Camera with Surface Mount (WS-HS35S)

Features

Built-in English OSD Menu with password protection
Activities(scan, preset, pattern etc. ) can be schedeled when the PTZ camera parks or powers up
Alarm input, alarm output, alarm action
Proportional pan automatically reduces or increases the pan/tilt speed as per zoom times
Windows blanking: 8 areas
The heater startup mode is programmable
Manual-controlled scan area adjustable
New and easy installation design with EasyClip
Specification
ModelWS-HS18WS-HS26WS-HS36WS-HS23WS-HS35
Signal FormatPAL/NTSC
Image Sensor1/4-type Exview HAD CCD
Resolution480TVL530TVL540TVL
S/N RatioNot less than 50dB
Illumination0.01Lux
Day/NightYes
Optical Zoom18X26X36X23X35X
Digital Zoom12X
LensF1.4-F3.0
F=4.1-73.8mm F1.6-F3.8
F=3.5-91mmF1.6-3.7
F=3.6-82.8mmF1.6-3.7
F=3.6-82.8mmF1.4-3.6
F=3.4-119mm
AGCAuto/Manual
BLCAuto/Manual
Pan/Tilt SpeedPan: 0.05~400° /sec, Tilt: 0.03~240° /sec
Pan/Tilt RangePan: 0~360° Continuous; Tilt: 0~92° , auto filp
Auto AccuracyAuto switch from 0 to 54 preset positions sequentially
Pattern Scan4 routines of pattern scan
Track Accuacy0.05 Degree
Presets256
Comm. PortRS485
Band Rate1200BPS, 2400BPS, 4800BPS, 9600BPS, 19200BPS
Zones8
Alarms4 Inputs / 2 Outputs
Operating Temp25° C ~ +70° C (w/o heater) / -50° C ~ +70° C (with heater)
PowerDC12V / AC24V, 20W (with no heater) or 50W (with heater)
