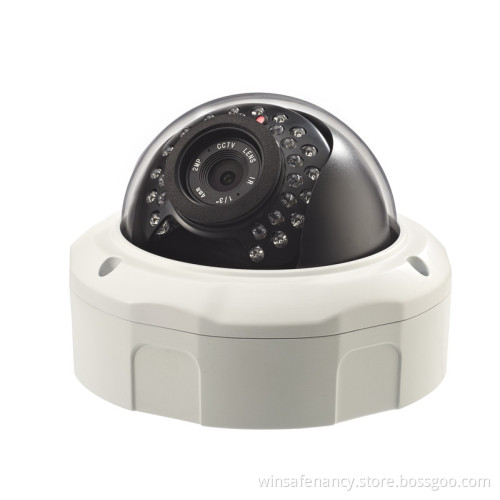

1080P IP Dome Camera (WS-SL22)

Specification
ModelWS-SL22
ItemAnti-explosion Dome Camera
Device Type1080P Sony MX 122 CMOS sensor
Size1/2.5
Day/NightYes
Min. Scene Illumination0.01Lux(IR ON)
Infrared SensitivitySupport
FilterIR-CUT
IR-ledYes
IR Distance15-20M
Electronic Shutter1/5-1/15, 000/s
Lens
Lens3.6MM Lens optional
ApertureFixed Aperture F1.2
Video
CompressionH. 264 Main Profile/Baseline
Picture Resolution1920*1080@30fps, 1280*720@ 30fps
Steam flowSuport dual stream
Bit Rate128-8192kbps
Bit Rate TypeCBR/VBR
S/N Ratio>50dB
Image enhancementAuto White Balance, Backligh compensation, Brighness, Contrast, Saturation adjusted
SubtitlesSupport channel name, date/time
Flip ConfigUp/down, Left/righ
Audio/Alarm
AudioSupport the microphone input and Line out, support two-way voice intercom equipment
EquipmentAn external audio equipment
Audio input/outputone channel audio input, one channel audio output
Audio CompressionG. 711/G. 726
Alarm input/outputone channel alarm input, one channel alarm output
Alarm wayMotion Detection: Configure motion area, detecting sensitivity is adjustable
Cover alarm: The alarm sensitivity is adjustable
Alarm ProcessingThe control center to monitor, Go to PTZ preeset POS, send E-mail, Log record, SD card storage etc.
Network
ProtocolHTTP, TCP/IP, UDP, SMTP, DDNS, DNS, SNTP, DHCP, FTP, RTP, RTSP, UPNP, ONVIF, 28181
EthernetEthernet (10/100 Base-T), RJ-45 connector
SafetyIP address filtering, User level password protection, The user access log
Softwre
Web BrowserMicrosoft Internet Explorer 6.0 and above, google, firefox etc.
Software ManagementCMS and the devices compatible with ONVIF
Software intelligence functionMotion detection, Miss object detection, Moving object tracking, counting, Retrograde motion detection, etc.
Event actionFiles are stored to the back end equipment, Send E-mail, Send SMS, Zoom in alarm, Pop ap map, Go to PTZ preset POS etc
Mobile PhoneSupport iPhone, Android, Bit rate: 32k-512k adjustable, Frame rate: 6-12fps
Remote AccessDDNS, Software, P2P
Physical Properties
AccessoriesPower adapter, Network cable, Stand, Operation manual, CD, Screw bag
Power ComsumptionDC 12V, Module power consumption is less than 2W
Temperature-20° C - 60° C
Humidity10% - 80%
CertificationCE, FCC
