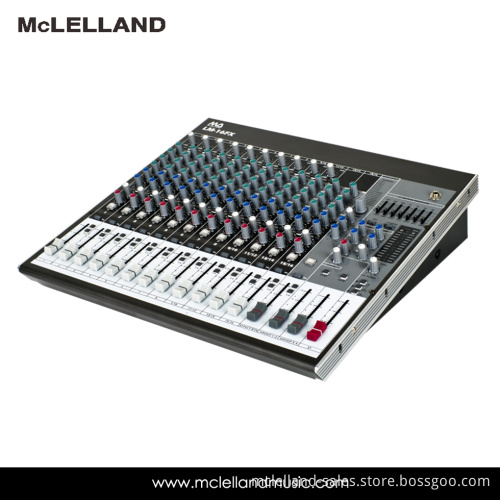

16- Input 6-Bus Mixer with Mic Preamps, Eqs, Multi-Fx Processor

Professional Mixer(LM-16FX)

16- Input 6-Bus Mixer with Mic Preamps, EQs, Multi-FX Processor

Features:

16 input channels: 8 mono microphone/line inputs

2 stereo line inputs, 2 stereo line/mono mic inputs

10 high-precision mic preamps with switchable phantom power

16 editable DSP effects

I/O patch points on all mono inputs

4 buses (stereo and group)

Main stereo bus plus stereo group bus

3-band channel EQ & HPF on all input channels

Switchable high-pass filters

2 aux sends on each channel

Stereo auxiliary return

Illuminated switches

Rack mount brackets included for ultimate flexibility

High-quality components and exceptionally rugged construction ensure long life

Specification:

THD: Less than: 0.1%

Frequency Response: 20 Hz-20K Hz

Input Hum & Noise: -128 dB

Crosstalk: -70dB

Phantom Power: +48 V

CH & ST CH Input: 44 dB

CH & ST High Pass Filter: 80 Hz, 12 dB/Oct

CH EQ Mono High: +/- 15 dB @ 10K Hz

Mid: +/- 15 dB @ 2.5K Hz

Low: +/- 15 dB @ 100K Hz

CH EQ Stereo High: +/- 15 dB @ 10 Hz

Hi-Mid: +/- 15 dB @ 3K Hz

Low-Mid: +/- 15 dB @ 800 Hz

LOW: +/- 15 dB @ 100 Hz

Graphic Equalizer: 7 Band(125, 250, 500, 1K, 2K, 4K, 8KHz), +/-12dB

Intemal Digital Effect: 16 programs
