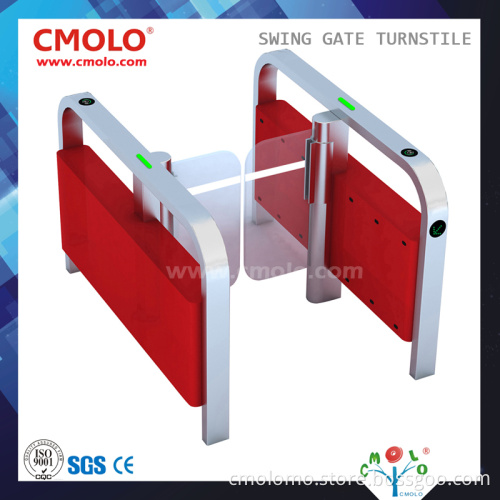

Ing Gate Turnstile (CPW-900ETS02)

China Manufacturer and exporter of Turnstile, Tripod Turnstile, Passage Turnstile, Wing Gate Turnstile, Access Control Systems, RFID Systems.
Model:CPW-900ETS02 Description:

The housing is made of the high quality stainless steel, and it is seamless design.The internal structures are all under rustproof processing, so it will be durable.The machine works smoothly without any noise.

The system adopts standard electrical interfaces, compatible with all main access control card readers (Including but not limited to magnetic card reader, barcode card reader, ID card reader, IC card reader etc and biological features card reader, such as fingerprint reader, iris reader, face recognition reader etc.), it is suitable for the different security grade access control passageways, to effectively prevent the illegal person entering and exiting.

The product is organically integrated with the automation control technology, such as the mechanical transmission, microelectronics control and RFID etc, to manage the appointed read-write equipment according to the operating requirement of the customer.

The system has a special design to meet the requirement of fire control, so as to guarantee the passageway is unimpeded when it is in an emergency, to evacuate people in time.

Equipped with the free control software for human-machine interface and control command SDK, it is easy to control and adjust, and the expandability is strong.

Default, two single swing gates and one double swing gate are made up a double lanes.It also can custom-made as two single swing gates to constitute one lane or two single swing gates and several double swing gates to constitute multi-lanes.

Applications:

Office occasion:Intelligent building, commercial mansion, government building
Science and education unit:Colleges, institute, library, etc

Commercial service places:Super market, mall, hotel, club, bank, etc
Transportation site:Bus station, train station, subway, airport etc.

Function Specification:

Home position reset:When the passing was finished, the swing gate will turn back to the home position.

Reset automatically:(Remote manually reset is optional).
(1)When the legal signal is given, go signal will be cancelled and the swing gate will go back to home position if passage through is not completed within the pre-set time, and it will not count.

(2)Anomalous system or illegal passing causes the swing gate not to turn back to the home position.After the pre-set time (the time is adjustable), the swing gate will turn back to the home position automatically.

Anti-intruder function:When the turnstile is under control mode, and has not get legal signal or the passing is forbidden, if people pass, which is called the illegal intrusion.The system will alarm automatically and to be sure that the swing will be closed.

Anti-reverse function:Before one direction passing is finished, people passing from the opposite direction will be treated as reverse direction intrusion, and the system will alarm automatically.

Tailgating-proof function:The Infrared sensor is used to detect the people traffic.If the system detects the tailgating, the alarm will be triggered automatically and swing gate will be closed.The minimum distance of tailgating is less than 20 mm.

Self-check function:When the equipment is power on or restart, it will detect the functions are normal or not, if the system finds abnormal situation, it will alarm.

Intelligent alarm function:Including alarm because of illegal intrusion, reverse intrusion, tailgating, self-check etc.It can make linkage with other alarm monitoring equipments and can set the alarm mode and parameters by software.

Operating mode:Normally open / normally closed (default), can be changed freely.
Compatibility:Equipped with dry contact signal output interface and wide threshold electric level signal input interface, compatible with all kinds of access controll.
