Full Height Turnstile

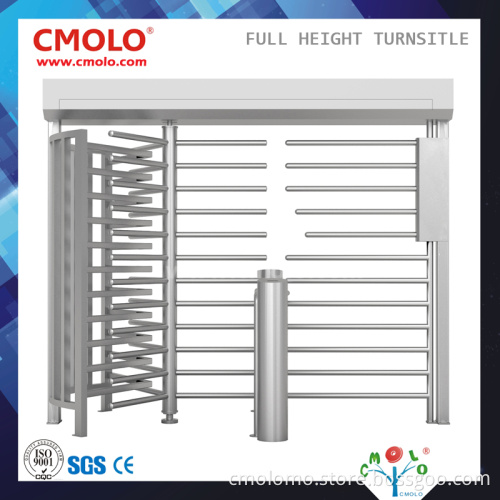

Full Height Turnstile (CPW-251AB01)

Product Descriptions:
Full Height Turnstile developed by CMOLO is available for any area which needs a high level of security without persons to monitor.

Semi-Automatic Type:
Model: CPW-251ABS01
The center rotor will be set free (default) or locked (optional) automatically when the power is off.
Emergency-escape function: The center rotor will be set free automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
The structure has no motor.

Function Specifications:
Both directions can be set as controlled mode or free mode.
NO mode & NC mode can be switched over by users easily & freely.
Self-recovery function: The machine will recovery automatically with invalid counting if passage is not completed within pre-set time (5 seconds default, adjustable by software).
With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of access controllers.
Each machine can be set by Physical Address (Optional).
Equipped with free control software for man-machine interface & control command SDK.

Framework Specifications:
Framework: 304 (Standard) / 316 grade stainless steel
Thickness of Ply: 1.5mm (Standard) / 2.0mm
Finishing: Brushed surface (Standard) / Polishing surface
Arm Length: 500~700mm
Arm Diameter: 38mm (Standard) / 48mm
Max Tolerance of Arm: 30kg
Driving Force of Arm: 3kg

Electric Specifications:
Power Voltage: AC220V / AC85~230V
Operation Voltage: DC24V
Operation Current: 3A / 5A (Max)
Driving Motor: Brushless DC motor
Communication Interface: RS485 (1CH) / RS232 (3CH); Available to CAN BUS and Ethernet (Optional)
Control I/O: Relay Out (6CH) / Level Input (4CH)
Transit Speed: 20~35 passage / minute
Temperature: -20C~60C
Work Environment: Indoor/ Outdoor (Shelter)
Traffic-light Indication

Customized Features:
Alternative Materials, Finishes and Custom Design
Access control System Integration
Ticket System Integration
Camera System Integration
Thermostat System Integration
Remote-Controlled Button
Usage Counters
Waterproof and Dustproof Design: IP55 for mechanical module, IP65 for electric module
