Full Height Tusntile (CPW-222B)

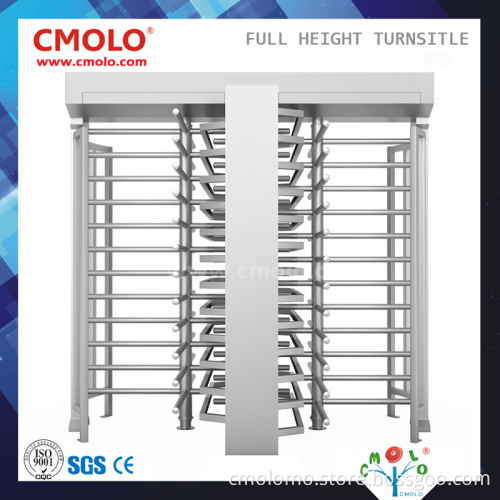

Full Height Turnstile (CPW-222B)

Product Descriptions:
Full Height Turnstile developed by CMOLO is available for any area which needs a high level of security without persons to monitor.
The machine is well designed to be rustproof, durable and able to resist external destroy.

Full Height Turnstile is normally designed to be Semi-Automatic Type, but we can also provide Full Automatic Type and Manual Type for customization.
Full Height Turnstile with 3-arm obstacle: The center rotor rotates 120 degrees per time, and it offers a comfortable space for users.
Full Height Turnstile with 4-arm obstacle: The center rotor rotates 90 degrees per time, and it offers a higher level of security but less space for users.
This series has 4-arm obstacle.

Semi-Automatic Type:
Model: CPW-222B
The center rotor will be set free (default) or locked (optional) automatically when the power is off.
Emergency-escape function: The center rotor will be set free automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
The structure has no motor.

Manual Type:
Model: Customization
The center rotor can only rotate by single direction, but the direction can be changed easily inside.
The structure has no electric devices.

Fully Automatic Type:
Model: Customization
The center rotor will be set free (default) or locked (optional) automatically when the power is off.
Multi-alarm function: When arms are pushed by force illegally, alarm will be triggered automatically and the center rotor will be set locked (the duration of the alarm and lock is adjustable by software).

Automatic-rotation function: Once an open signal is given, the center rotor will rotate automatically.
Anti-reverse-rotation function: Reverse rotation will be forbidden once the arms have moved to pre-set degree (adjustable by software) from home.
Emergency-escape function: The center rotor will be set free automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.

Framework Specifications:
Framework: 304 (Standard) / 316 grade stainless steel
Thickness of Ply: 1.5mm (Standard) / 2.0mm
Finishing: Brushed surface (Standard) / Polishing surface
Arm Length: 500~700mm
Arm Diameter: 38mm (Standard) / 48mm
Max Tolerance of Arm: 30kg
Driving Force of Arm: 3kg

Electric Specifications:
Power Voltage: AC220V / AC85~230V
Operation Voltage: DC24V
Operation Current: 3A / 5A (Max)
Driving Motor: Brushless DC motor
Communication Interface: RS485 (1CH) / RS232 (3CH); Available to CAN BUS and Ethernet (Optional)
Control I/O: Relay Out (6CH) / Level Input (4CH)
Transit Speed: 20~35 passage / minute
Temperature: -20C~60C
Work Environment: Indoor/ Outdoor (Shelter)
Traffic-light Indication
