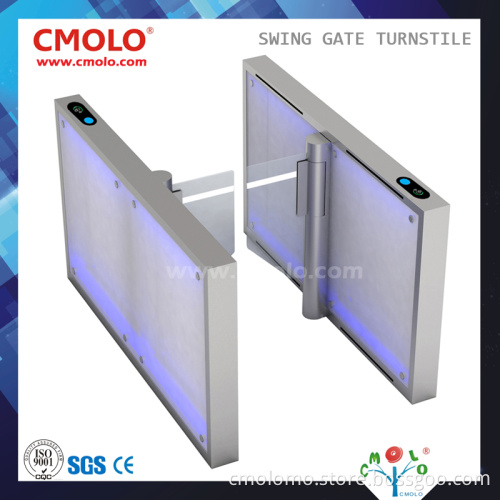

CE Approved Swing Gate Turnstile- New Design

CMOLO New Swing Gate Turnstile CPW-322FS

Framework Specifications:
Framework: 304 (Standard) / 316 grade stainless steel
Thickness of Ply: 1.5mm (Standard) / 2.0mm
Finishing: Brushed surface (Standard) / Polishing surface
Material of Obstacle: Stainless steel (Default) / Organic glass (Optional) / Tempered glass (Optional)
Passage Width: 550mm (Default) / 1500mm (Max)

Electric Specifications:
Power Voltage: AC220V / AC85~230V
Operation Voltage: DC24V
Operation Current: 3A / 5A (Max)
Driving Motor: Brushless DC motor
Communication Interface: RS485 (1CH) / RS232 (3CH); Available to CAN BUS and Ethernet (Optional)
Control I/O: Relay Out (6CH) / Level Input (4CH)
Transit Speed: 30~45 passage / minute
Temperature: -20~60 Degrees
Work Environment: Indoor
Traffic-light Indication

Customized Features:
Alternative Materials, Finishes and Custom Design
Access Control System Integration
Ticket System Integration
Camera System Integration
Thermostat System Integration
Remote-Controlled Button
Usage Counters
Waterproof and Dustproof Design: IP55 for mechanical module, IP65 for electric module

Applications:
Office building
Government
School
Hotel
Super market
Bank
Park
