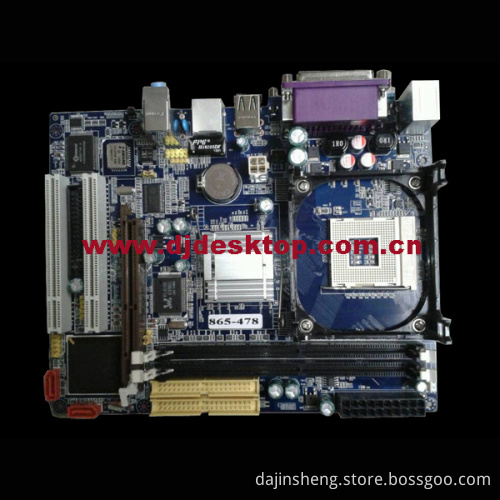

865-478 Desktop Motherboard with 2*DDR/2*PCI/2*IDE

865-478 Desktop Motherboard with 2*DDR/2*PCI/2*IDE

1. Intel 865+ICH5 Chipset, LGA 478, Supports 800/533/400/333 MHz FSB
2. Supports DDR200/DDR266/DDR333
3.2*SATA, 2*USB, 1*VGA, 1*AGP 4X, 2*PCI Express x1
4. RJ45 REALTEK RTL8100C(10/100 Mbps)



CPU
Supports Intel Pentium 4 SOCKET 478 CPU
Supports Intel Celeron D SOCKET 478 CPU
Supports Intel Celeron CPU Socket 478 CPU
CHIPSETS
Northbridge: Intel 865GL/GV chipset
Southbridge: Intel ICH5
VGA
Integrated 2D/3D Graphics Controller
MEMORY
2*184-pin DIMM slots for DDR SDRAM memory modules
Supports DDR200/DDR266/DDR333
Expansion slot
1*AGP 4X
2*32-bit PCI slots 2.2 specification compliant
LAN CARD
RJ45 REALTEK RTL8100C(10/100 Mbps)
SOUND CARD
ALC655/653 /101 (Onboard AC'97 2.3 specification compliant)
IDE
Provides two channel connecting four IDE drives
Supports Ultra ATA66/100 synchronous DMA modes
SATA
2*SATA2 ports (optional)
I/O PORTS
1*serial port
1*parallel port, supports EPP/ECP/SPP transfers
2*USB ports
1*PS/2 Keyboard port
1*PS/2 Mouse port
1*VGA PORT
1*Multiple stereo( Mic In, Line In, Line Out jack)
1*RJ45 PORT
ON BOARD PORTS
20 PIN ATX POWER PORT
4 PIN ATX 12V POWER PORT
1*CD_IN port
2*USB 2.0 PORTS
1*CPU fan connector
1*F_AUDIO PORT
BIOS
4M FLASH ROM
Accessories
CD DRIVER, BACK PANEL, MANUAL, SATA CABLE, IDE CABLE.
SIZE
211mm x168mm
PACKING
20PCS IN ONE CARTON
