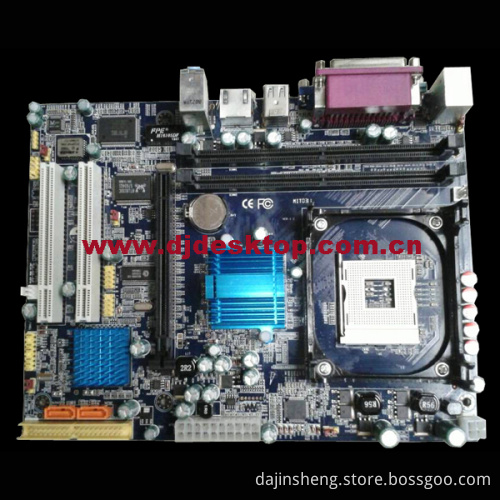

915 Chipset LGA478 Support DDR2 ATX Motherboard

ATX motherboard 915 -478 support 2*DDR2

1. Intel 915+801fbm chipset, LGA 478, supports 800/533 MHz fsb.
2. Supports ddrii 533/400 memory (maximum 2GB RAM memory).
3.2*SATA, 2*USB, 1*VGA, 1*PCI express X16, 2*PCI express X1.
4.1*RJ45 realtek rtl8100c(10/100 Mbps).

CPU
Supports intel socket 478 CPU
Supports intel pentium 4 socket 478 CPU
Supports intel celeron d socket 478 CPU
Supports 400MHz/533MHz/800MHz host bus frequency
Supports intel pentium ht (hyper threading technology) CPU
Chipsets
Northbridge: Intel915gm
Southbridge: Intel801fbm
VGA
Intel graphics media accelerator 900
Memory
Provides 2*240 pin ddrii slots
Supports ddrii 533/400 memory(maximum 2GB RAM memory)
Expansion slot
1*PCI express X16 slot
2*32-bit PCI slots 2.2 specification compliant
LAN card
1*RJ45 realtek rtl8100c(10/100 Mbps)
Sound card
Alc655/653 (onboard ac'97 2.3 specification compliant)
IDE
Provides 1 channel connecting for IDE drives
Supports ultra ATA66/100/133 synchronous DMA modes
SATA
2*SATA2 ports
I/o ports
1*serial port
1*parallel port, supports EPP/ecp/spp transfers
2*USB ports
1*PS/2 keyboard port
1*PS/2 mouse port
1*VGA port
1*multiple stereo( mic in, line in, line out jack)
1*RJ45 port
On board ports
20 pin ATX power port
4 pin ATX 12V power port
1*CD_in port
4*USB 2.0 ports
1*CPU fan connector
1*sys_fan connector
1*j_COM
1*f_audio port
BIOS
Ami 4m flash ROM
Accessories
CD driver, back panel, manual, SATA cable, IDE cable.
Size
240mm X185mm
Packing
20PCS in one carton
