H61 Chipset LGA1155 Support DDR3 Micro ATX Motherboard for PC

Get Latest Price

Payment Type:: L/C, T/T, Western Union, Paypal, Money Gram, Cash

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T, Western Union, Paypal, Money Gram, Cash

Product Description

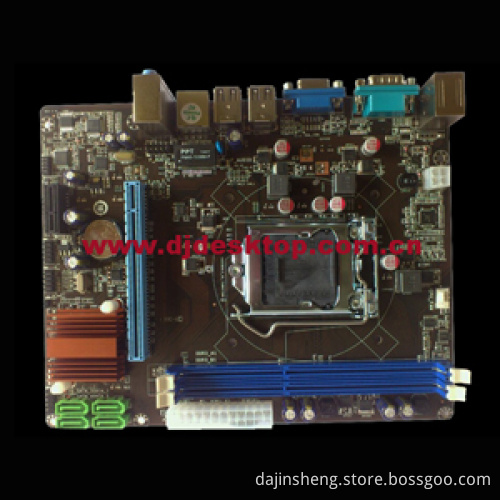

Micro ATX H61-1155 PC Motherboard Support DDR3

1. Intel H61+ICH8 Chipset, LGA 1155, Supports I3/I5/I7 Processor
2. Supports 2*DDR3 1333/1066/800memory, Dual Channel, support up to 8GB by 2 DIMM slots.
3.4*SATA, 4*USB2.0, 1*VGA, 1*PCI Express X16, 1*PCI Express X1.
4. Realtek RTL81XX(10/100/1000 Mbit)

CPU
LGA1155, supports Intel Core I7 / Intel Core I5 / Intel Core I3 / Intel Pentium / Intel Celeron CPU
For other Intel Core CPUs with External video card
Chipset
Northbridge: Intel H61 Express Chipset
Southbridge: Intel+ICH8
Memory
2X1.5V DDR3 DIMM, maximum capacity to 8G
Dual channel 1333/1066/800 MHz
Graphics
1*VGA port
Audio
Realtek ALC662, supports High Definition
Supports Audio 2/4/5.1 sound channel
LAN
Realtek RTL81XX(10/100/1000 Mbit)
Expansion Slot
1*PCI Express X16(supports PCI Express 3.0 with the Intel 22nm series CPU
1*PCI Express X1(supports PCI Express 2.0)
Internal slots
4*SATA, 3GB/s
1*CPU fan
1*system fan
1*control board slot
1*sound source slot
2*USB2.0/1.1(for 4 USB slots)
1*COM(RS232)
Back slots
1*PS/2 keyboard slot
1*PS/2 mouse slot
1*VGA
4*USB 2.0/1.1 ports
Accessories
CD DRIVER, BACK PANEL, MANUAL, SATA CABLE, IDE CABLE.
SIZE
220mm X 165mm
PACKING
20PCS IN ONE CARTON
