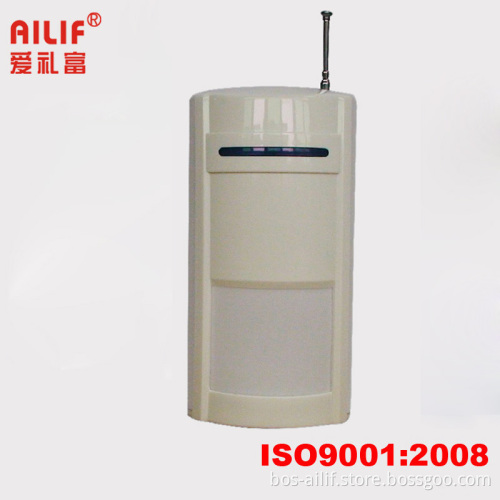

Wireless PIR Detector with Frequency 315/433 MHz (ALF-WS05)

The product is wireless PIR detector with high stability. It has adopted advanced technology in signal
Processing and provided superhigh detection ability and anti error alarm. The wireless detector will detect movement of human automatically when intruder pass through the detected area, and i t wi l l send out alarm signal to alarm host i f there is movement.

Main Features:
ASIC Adopted
Auto temperature compensation
Send alarm signal by RF
No wiring, install conveniently
Low battery indication
SMT design adopted


Parameter:
Operating Voltage: DC9V
Static current: ≤ 25uA
Alarm current: ≤ 10mA
Detection distance: 2m, 4m, 9m adjustable
Transmission frequency: 315M or 433MHz
Transmission distance: 200m in the open area
Demension: 110× 69.5× 40mm



Our Advantage:
1. The same product, the lowest price.
2. The same price, the best quality.
3. The same quality, the fast delivery time.
To provide our customers with best price and quality is our long term target.

Company Introduction:
(1)Having our own factory which provides you the most competitive price.
(2)CE, FCC, ROHS, IP55 for some products and ISO9001 certificate make you satisfied with quality when using our products.
(3)Professional team provide you the latest design and satisfying sevices.
Thanks for your time of viewing.
Please contact me freely to get more information
