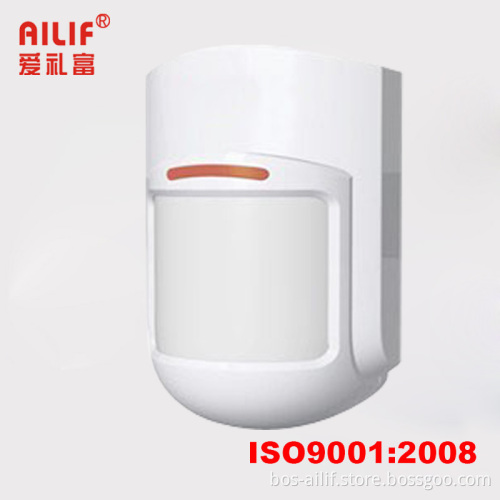

Wide Angle PIR Sensor (ALF-P01)

The product is a wall-mounted wide angle PIR sensor with high stability. It adopts advanced signal processing technology which provides superhigh detection ability and anti-false alarm ability, and MCU
Processing ensuring the reliability from design basis.


Features:
1. MCU control, resist false alarm efficiently
2. Double temperature compensation
3. Pulse count adjustment
4. Anti white light interference
5. Anti RF interference (20V/m-1GHz)
6. Fresnel lens
7. Wall/corner installation
8. Alarm output N. C. Or N. O.
9. Alarm time optional (3s or 30s)
10. Intelligent floating thresholds technology
11. Patent appearance design
12. SMT manufacture technology with high stability


Specifications:
1. Operation voltage: DC 9-16V
2. Current consumption: ≤ 18mA(DC 12V)
3. Detecting distance: 12m
4. Detecting speed: 0.3m / s- 3m/ s
5. Detecting angle: 110 °
6. Self-testing time: 60s
7. Alarm time: 3s/ 30s optional
8. Alarm indication: Red LED
9. Sensor: Double element pyroelectrie infrared sensor
10. Operating temperature: -10 ~ +50 centigrade
11. Environment humidity: ≤ 95% RH(no congelation)
12. Anti RF interference: 10MHz-1GHz 20V/m
13. Installation model: Wall/ corner mounted
14. Installation height: 1.7m-2.5m
15. Alarm output: N. C. Or N. O. (DC28V 100mA)
16. Tamper output: N. C. (DC28V 100mA)
17. Execute criterion: GB10408.1-2000; GB10408.5-2000
18. Outline size: 106* 62* 46mm


Our Advantage:
1. The same product, the lowest price.
2. The same price, the best quality.
3. The same quality, the fast delivery time.
To provide our customers with best price and quality is our long term target.


Company Introduction:
(1)Having our own factory which provides you the most competitive price.
(2)CE, FCC, ROHS, IP55 for some products and ISO9001 certificate make you satisfied with quality when using our products.
(3)Professional team provide you the latest design and satisfying sevices.
Thanks for your time of viewing.
Please contact me freely to get more information
