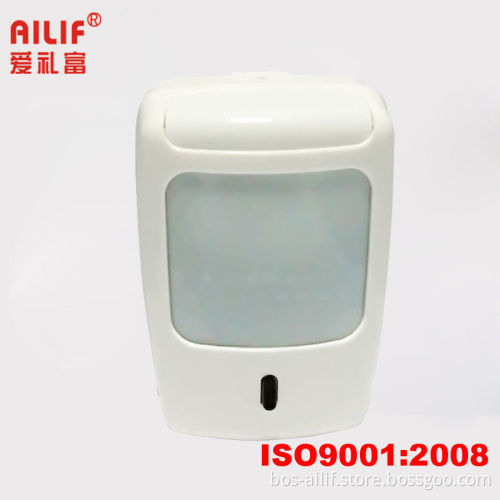

Passive Infrared Motion Detector (ALF-P215T)

1. Passive Infrared Motion Detector, PIR motion detector
2. Simple installation for basic security applications
3. The stylish white housing is designed to blend with any room decor
4. A large wire channel allows for quick, neat installations
5. Sabotage-resistant Lens Design
6. Selectable Sensitivity
7. White Light Immunity
8. Designed for residential and light commercial applications


Parameter:
1. Power Requirements: 20mA, 12VDC
2. Operating Voltage: 10 to 14VDC
3. Alarm Relay: Form A (NC) \ 100mA 24VDC
4. Tamper Switch: 24V, 100mA
5. Operating Temperature: -10 to 49 centigrade
6. RF Immunity: 20V/m from 10-1000 MHz.
7. White Light Immunity: 2500 Lux.
8. PIR Sensitivity: Jumper selectable - high and low
9. LED Enable: Can be enabled/disable by a jumper
10. Dimension: 87mm X 62mm X 40mm



Our Advantage:
1. The same product, the lowest price.
2. The same price, the best quality.
3. The same quality, the fast delivery time.
To provide our customers with best price and quality is our long term target.

Company Introduction:
(1)Having our own factory which provides you the most competitive price.
(2)CE, FCC, ROHS, IP55 for some products and ISO9001 certificate make you satisfied with quality when using our products.
(3)Professional team provide you the latest design and satisfying sevices.
Thanks for your time of viewing.
Please contact me freely to get more information
