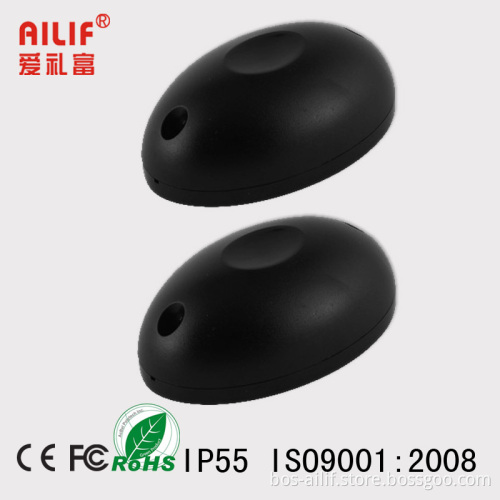

Photoelectric Beam Sensor (ABO-20L)

Photoelectric Beam Sensor can be installed at the door, windoor, wall or packing lot, and access control system. With beautiful design and stable function, it is popular all over the world. The single beam sensor also passed CE, FCC, ROHS, IP55 certification.


Main Features:

1. Anti-glare up to 50, 000 LUX, built-in automatic adjustment strong light filtering system
2. Fully sealed design, rain-proof(fog), dust-proof(worm)
3. When faced with fog or inclement weather, the detector sensitivity will increase automatically(AGC circuit)
4. With high levels of anti-RFI/EMI capability
5. Unique design of the digital filter circuit
6. High-power transmitter, sensitivity surplus degree up to 90%
7. Anti-lightning circuit design
8. Can be used with access control system, extensive use
9. Fully sealed design, rain-proof(fog), dustproof( worm)
10. With high levels of anti-RFI/EMI capability
11. Professional anti-jamming optical housing


Specifications:

1. Outdoor alert distance: 10m
2. Indoor alert distance: 20m
3. Working voltage: DC12~24V
4. Operating temperature: -25~+55 centigrade
5. Relay output: 1A max 36V
6. Size: 49.2*76*21.6mm
7. Packing: 200PCS/Carton
