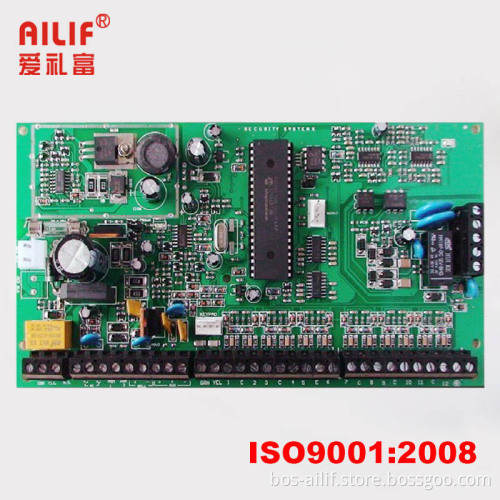

24 Zones Alarm Host for Home Alarm System (ALF-748)

1.24 Zones Alarm Host For Home Alarm System, with PSTN alarm and stable function
2. Single-zone connection: (12+2)zone; Double zone connection: (24+0)zone
3. Each zone has a zone input, can be connected directly by a detector or a door maganetic, so the number of panel zone can add one
4. When setting dual-zone to be valid, the panel can be accessed by two independent zone, the number of zone can be doubled
5. Dual-zone technology is operated by electric resistance and embedded software, no need of additional modules
6. Panel can confirm all detectors, the increased zone owns the functions of conventional zone and keyboard display, each zone can send their own different alarm code
7. Support wire smoke
8. Can lock the master password
9. Support pager report
10. Alarm output relay


Parameter:
Auxiliary power output: 1000mA, with automatic reset electronic fuse, limiting 1A
Bell Output: 1A, with automatic reset electronic fuse, limiting 3A
PGM programmable output: Ground (-), normally closed or open, maximum current --50mA
Serial data output: (1200, 1, N) must reprovision module
Configurable keyboard: 5
Subsystems: 2
