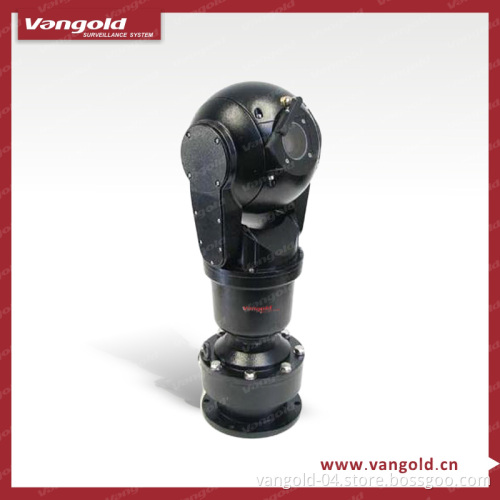

Shockproof Integrated PTZ Speed Dome Camera (VG-9900/36XR)

Unique features:
1. The ball is made from aluminum alloy ( thick: 5mm -15mm )
2. It is firm and airproof and the design is up to the requirement of four preventions:
Shock proof
Vandal proof
Erosion proof
Water proof ( IP66 )
3. Flat designed optical window uses toughened glass whose thickness is 5mm, and prevent distorted images with greatest extend and protect the built-in integrated camera.
4. 360° Continuous rotation both for pan and tilt

Other Features:
Embed high-resolution and variable long focus integrated camera

1. Complete aluminum alloy or stainless steel shell, attractive appearance
2. Selectable high definition module
3. Prevent dithering of the video image
4. Video freeze function of high speed preset positions
5. The Pan/tilt orientation displays and camera displays variably.
RS-485 feedback the condition of pan/tilt orientation
Wide dynamic video adjusts and video stabilize.
6. With AC linear synchronous lock, Built-in function menu
7. 128 preset positions with precision error less than 0.05 0
8. Variable automatic tour speed can be set to 1 0 -- 40 0 /sec
9. Preset target speed: 100 ° /sec for pan, 80 ° /sec for tilt
10. Manual control speed: 0.1 ° -100 ° /sec for pan, 0.1 ° -40 ° /sec for tilt
11. 360° Continuous rotation both for pan and tilt
12. Integrated multi protocol decoder controller, P protocol, D protocol, kalate, vicon, philiphs
13. Change speed proportionally--Pan/tilt speed and the depth of zoom lens decline proportionally and continuously
14. Running track memory function: Can memory a certain operate process, including any control operation of pan/tilt and lens
15.8 preset positions tour, dwell time can be set
16. Powering on self-restoring style_users can assign the dome movement after powering on
17. Embed in surge and lightning protector
18. Meeting IP66, CE, FCC. Standards

Mechanical structure
1. Al-alloy or stainless steel shell selectable
2. High strength optical window uses toughened glass whose thickness is 5mm
3. Working temperature: -40º C ~ +50º Cfor continuously working
4. Dimension: See the drawing
5. Weight: 8.5KG (Al-alloy ); 13.5KG (stainless steel )

Electrical Index
Input voltage 18VAC_30VAC/18VDC-30VDC
Input power 25VA ( without heater ) 40VA (with heater )
40VA (with heater )
Heat up and defrost Temperature sensor control

Features of the Pan& Tilt

Manual control speed:
Pan speed: 0.1° -100° /sec
Tilt sp eed: 0.1° -40 ° /sec
Preset target speed:
Pan speed: 100 ° /sec
Tilt speed: 80 ° /sec
Three scan modes: Auto/random/preset tour
Auto scan speed: 1° -40° /sec can be set
Pan running 360° Continous rotation
Tilt running 300° Continous rotation
Preset tour 8 preset positions tour, dwell time can be set

Applications
It is ideal for high security and hazardous environments applications, such as: Vehicle tracking, prison, navy, military, nuclear plants, seafronts, harbors, marine, embassy, police vehicles, armored vehicles, airports, high crime area, government research labs and so on.
