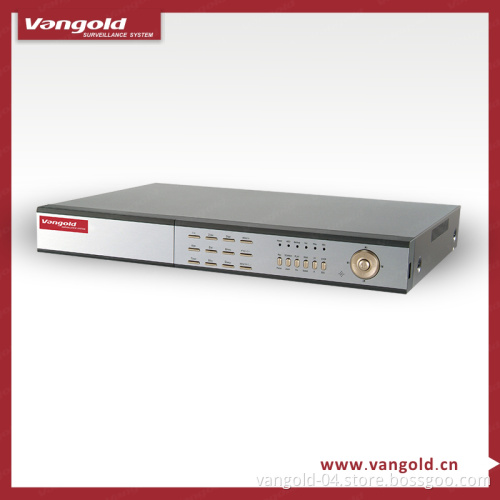

16CH Network DVR With 4CH Audio Input (VG-H8716-A)

16CH Network DVR Feature:
1.16CH Network DVR
2. Compression format: Standard H. 264 Baseline
3. Video Input: 1.0Vp-p/75Ω , BNC× 16
4. Video Output: 1.0Vp-p/75Ω , BNC× 2; HDMI(1080P)X1
High Resolution VGA: 1280× 1024;
HMDI: 1080P(1920× 1080 );
5. Record Resolution: 2CH D1 (50 fps) + 14CH CIF (350 fps)
PAL: 2CH D1 (704*576) 50fps + 14CH CIF(352*288) 350fps
NTSC: 2CH D1 (704*480) 60fps + 14CH CIF(352*240) 420fps
6. Frame Rate Display: 400fps(PAL)/480fps(NTSC)
7. Frame Rate Record: 400/100fps(PAL)/480/120fps(NTSC)
8. Frame Rate Playback: 100fps(PAL), 120fps(NTSC)
9. Audio Input: RCA× 4
10. Audio Output: RCA× 1
11. Audio MIC: RCA× 1
12. Alarm Input: 16CH
13. Alarm Output: 1CH
14. Recording Mode: Manual, time, motion, sensor
15. Pentaplex: Preview, record, playback, backup, remote access
16. Network Interface: RJ45 10M/100M/1000M Ethernet Adjustable
17. PTZ: YES 128presets, 32 cruises
18. IR controller: YES
19. Communication Interface: RS485 x 2, USB2.0 x 2
20. HDD: SATA x2
21. Power Supply: 12V
22. Dimension: W430 x D260 x H55mm
